GitLab Container Plugin

The GitLab Container Plugin integrates Digital.ai Release with GitLab to enable scalable, secure, and high-performance execution of GitLab tasks using Release Runners and containerized environments.

This plugin is best suited for execution-heavy, cloud-native workflows that require scalability, isolation, and dynamic routing of tasks across distributed runners.

note

For event-driven workflows, triggers, and dashboard tiles, use the GitLab Plugin (Jython-based).

What You Can Do With This Plugin

• Automate GitLab operations such as managing branches, tags, repositories, and merge requests
• Trigger and monitor GitLab pipelines
• Execute tasks on distributed runners using containerized environments
• Route tasks dynamically using runner capabilities

important

You must set up a connection to the GitLab server before adding GitLab tasks. For more information, see Set up Connection to GitLab Server.

Prerequisites

Before using this plugin, ensure the following:

GitLab Access

• Access to a GitLab instance (SaaS or self-managed)
• Ensure that all required projects exist in GitLab. You can create new projects in advance or dynamically as part of your release pipeline using the Create Project task.
• Digital.ai Release Runner set up to run container tasks

Authentication

You must provide a GitLab API token:

• Use a Personal Access Token (PAT) or Project Access Token
• Required scopes typically include:
  • api (recommended for full functionality)
  • read_api (for read-only operations)

note

Some tasks (such as triggering pipelines) require a pipeline trigger token, which is different from a Personal or Project Access Token.

Required Information

You should have the following details available before configuring or running tasks with the GitLab Container Plugin:

• GitLab Server URL (for example, https://gitlab.com)
• Project ID (numeric ID from GitLab project settings)
• Branch, tag, or ref names (depending on task)
• Merge Request ID (for MR-related tasks)

When To Use This Plugin

Use the GitLab Container Plugin when you need:

• Scalable, distributed execution using Release Runners and containers
• High-performance automation for execution-heavy or cloud-native workflows
• Dynamic routing of tasks to specific runners based on capabilities
• Isolation and security for tasks running in containerized environments

note

For event-driven workflows, triggers, and dashboard tiles, use the GitLab Plugin (Jython-based).

Common Pitfalls

note

Using the wrong token type
Pipeline trigger tokens and API tokens are different. Most tasks require an API token with the correct scopes. Some tasks (such as triggering pipelines) require a pipeline trigger token. See the Authentication and Trigger Pipeline (Container) sections for details.

Missing required token scopes
If the token does not include the api scope, operations such as merge, create, or trigger may fail.

Using project name instead of Project ID
The plugin expects a numeric Project ID, not the repository name.

Incorrect Merge Request ID
Use the internal MR ID from GitLab, not the title or branch name.

Set up Connection to GitLab Server

1. From the navigation pane, under CONFIGURATION, click Connections.
2. Under HTTP Server connections, next to GitLab: Server (Container), click . The New GitLab: Server (Container) page opens.
3. In the Title field, enter a name for the configuration.
4. In the URL field, enter the server URL.
5. If you want to connect to the server, without validating the TLS/SSL certificate, select the Allow Insecure Connection checkbox.
6. In the API Token field, enter the PAT token created for the GitLab API.
7. In Capabilities, define routing rules for Release Runners. Add one or more capability labels to direct tasks to appropriate runners.
8. To test the connection, click Test.
9. To save the configuration, click Save.

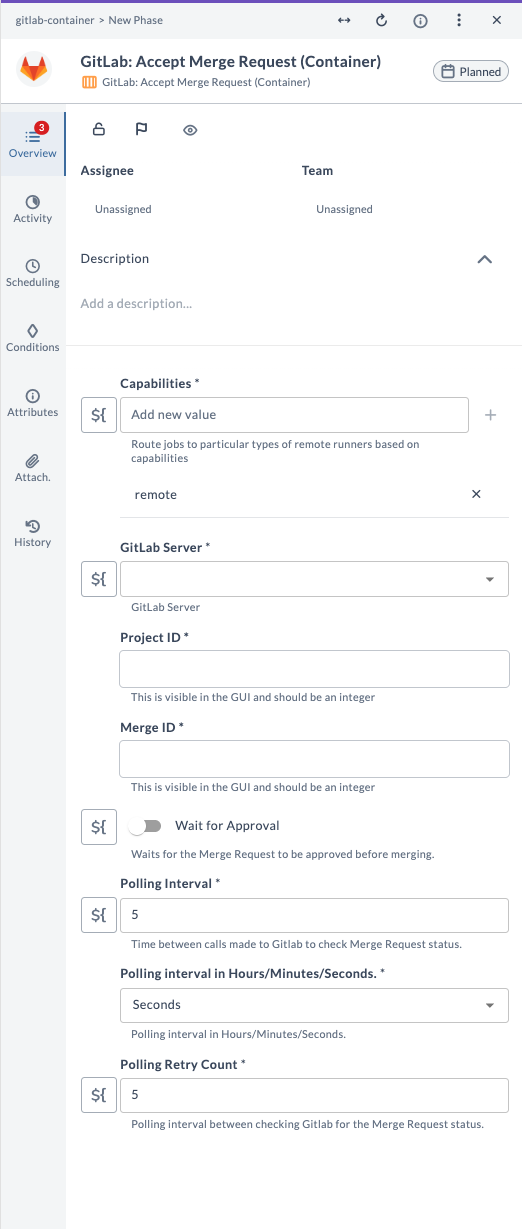

Accept Merge Request (Container)

This task accepts (merges) a merge request in a GitLab project after review and approval. Use it to automate the process of merging feature or bugfix branches into your main branch as part of a release workflow.

Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Project ID	Numeric ID of the GitLab project. Do not use the project name.	12345
Merge ID	Internal numeric ID of the merge request to accept. Not the title or branch name.	42
Wait for Approval	If enabled, waits for the merge request to be approved before merging.	true
Polling Interval	Time between calls made to GitLab to check merge request status.	5
Polling Interval Unit	Unit for polling interval: Seconds, Minutes, or Hours.	Seconds
Polling Retry Count	Number of polling attempts before giving up.	5

Example Usage

Suppose you want to accept a merge request for project ID 12345 and merge ID 42, waiting for approval, with a polling interval of 5 seconds and 5 retries:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Project ID	12345
Merge ID	42
Wait for Approval	true
Polling Interval	5
Polling Interval Unit	Seconds
Polling Retry Count	5

This will wait for the merge request to be approved, then merge it when ready, polling GitLab every 5 seconds up to 5 times.

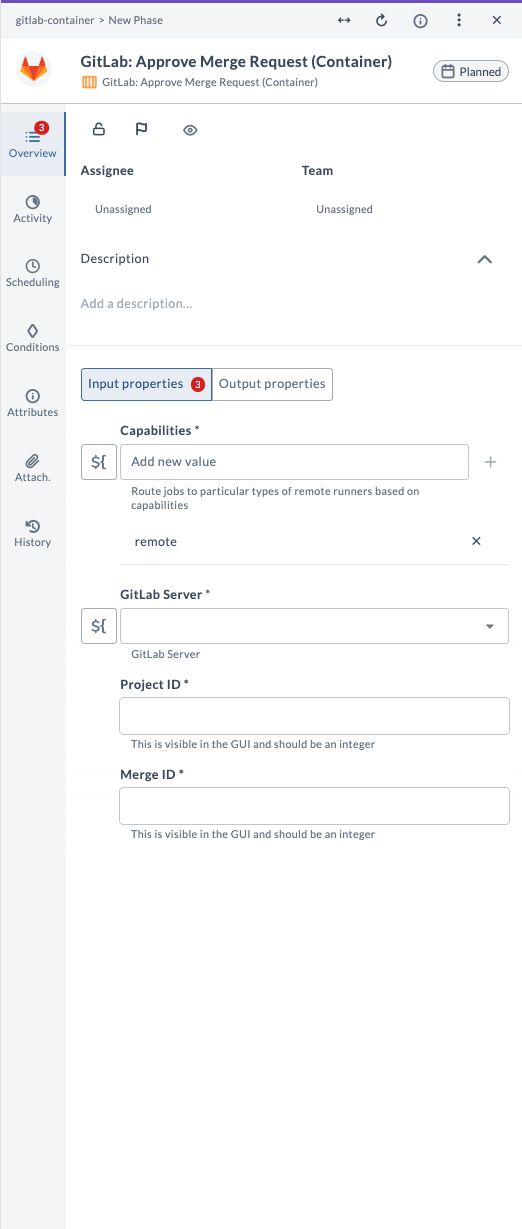

Approve Merge Request (Container)

This task approves a merge request in a GitLab project, indicating that it has been reviewed and is ready to be merged. Use it to automate the approval step as part of your release workflow.

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Project ID	Numeric ID of the GitLab project. Do not use the project name.	12345
Merge ID	Internal numeric ID of the merge request to approve.	42

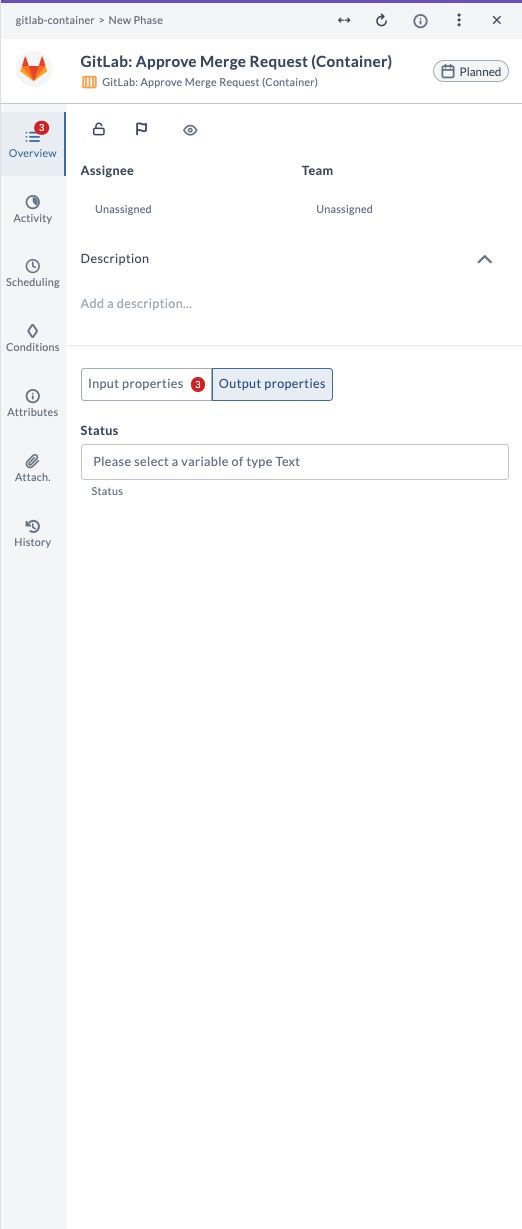

Output Field Descriptions

Field Name	Description	Example
Status	Status of the approval operation (Text).	success

Example Usage

Suppose you want to approve a merge request for project ID 12345 and merge ID 42:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Project ID	12345
Merge ID	42

The output field Status will indicate the result of the approval operation (for example, success).

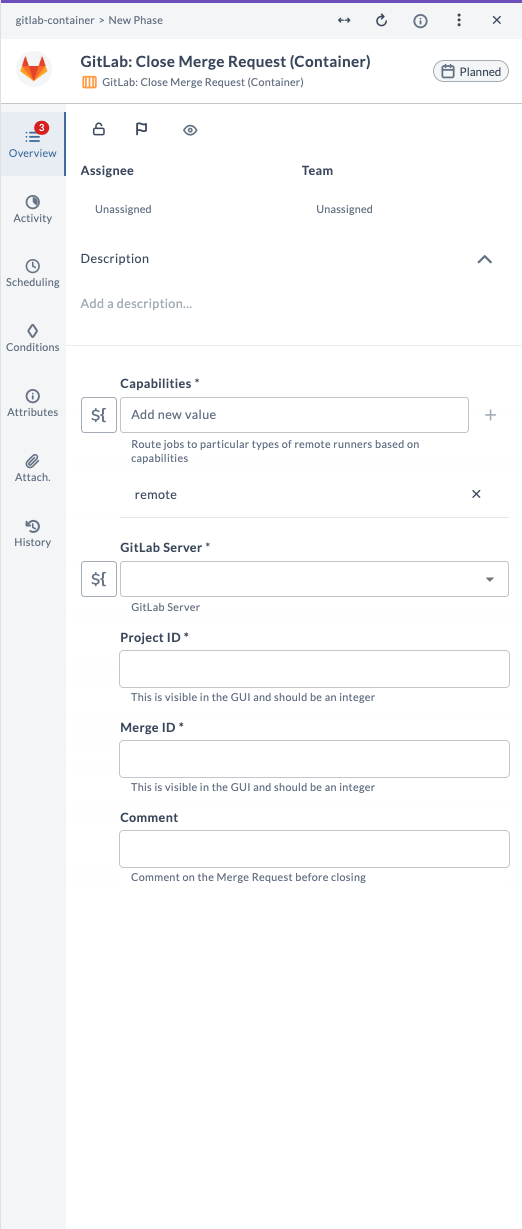

Close Merge Request (Container)

This task closes a merge request in a GitLab project, marking it as closed without merging. Use it to automate the process of discarding or ending merge requests that are no longer needed as part of your release workflow.

Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Project ID	Numeric ID of the GitLab project. Do not use the project name.	12345
Merge ID	Internal numeric ID of the merge request to close.	42
Comment	(Optional) Comment to add to the merge request before closing.	No longer needed

Example Usage

Suppose you want to close a merge request for project ID 12345 and merge ID 42, with a comment:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Project ID	12345
Merge ID	42
Comment	No longer needed

This will close the specified merge request and add the comment "No longer needed" to the merge request before closing it.

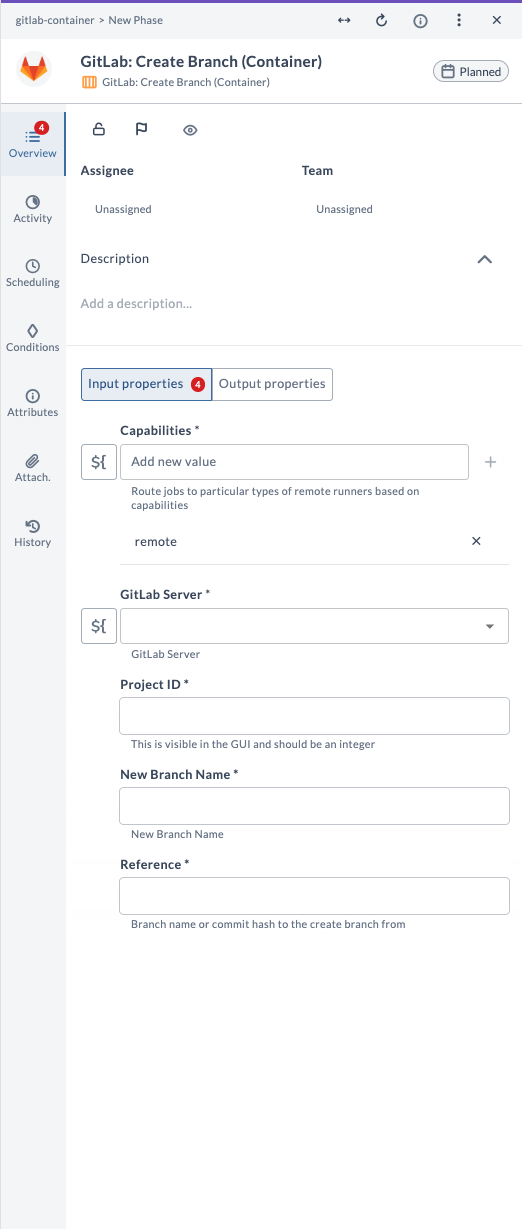

Create Branch (Container)

This task creates a new branch in a GitLab project. Use it to automate the process of starting a new line of development from a specific commit or branch as part of your release workflow.

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Project ID	Numeric ID of the GitLab project. Do not use the project name.	12345
New Branch Name	Name of the new branch to create.	feature/new-feature
Reference	Branch name or commit hash to create the new branch from.	main

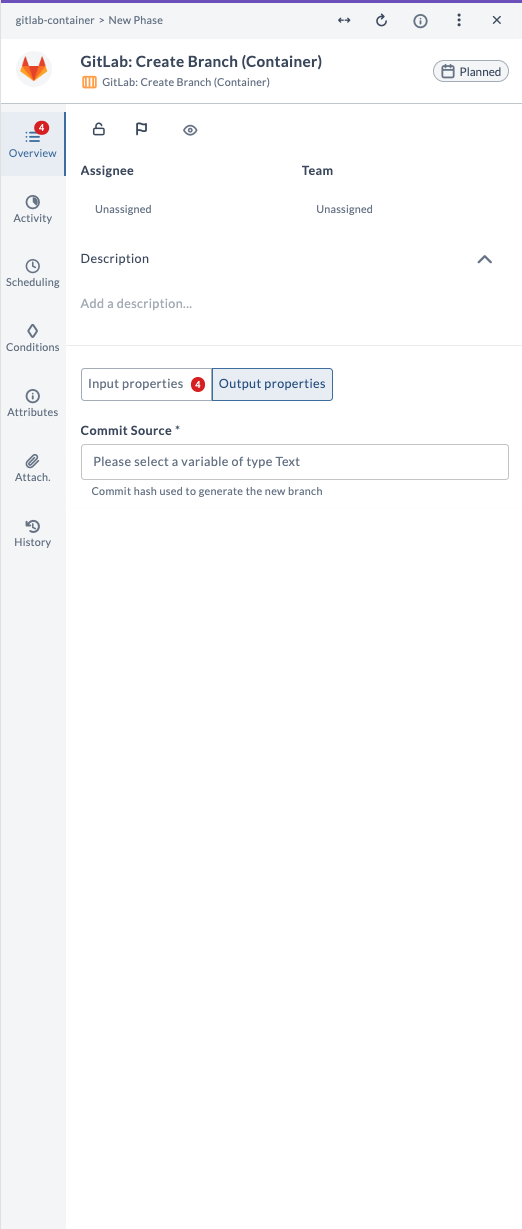

Output Field Descriptions

Field Name	Description	Example
Commit Source	Commit hash used to generate the new branch (Text).	1a2b3c4d5e6f...

Example Usage

Suppose you want to create a new branch called feature/new-feature from the main branch in project ID 12345:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Project ID	12345
New Branch Name	feature/new-feature
Reference	main

The output field Commit Source will contain the commit hash used to generate the new branch.

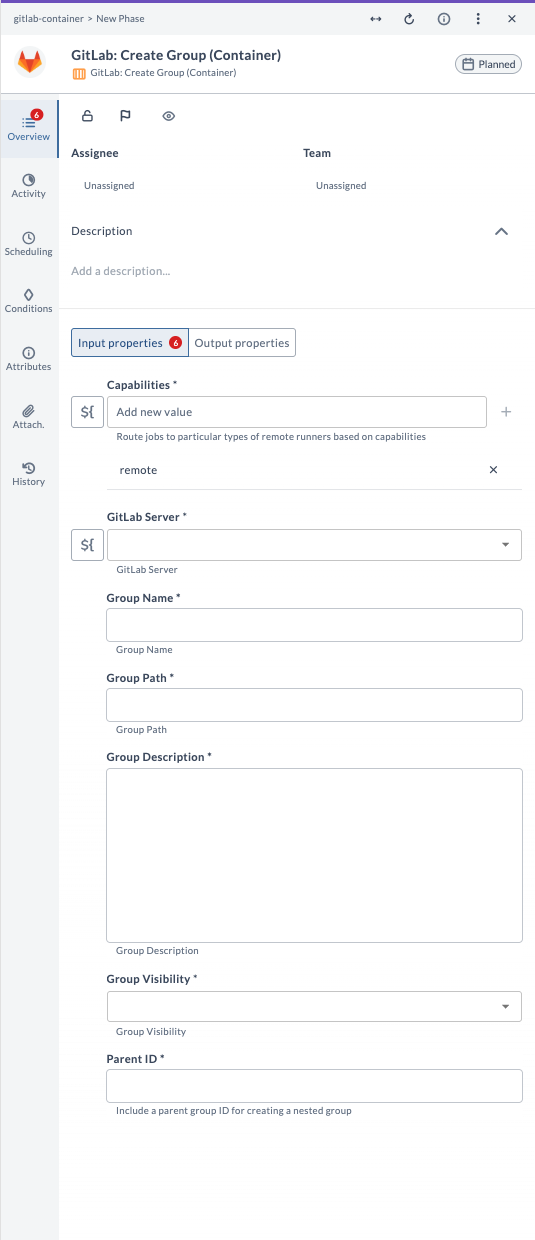

Create Group (Container)

This task creates a new group in GitLab. Use it to organize projects and manage permissions for a collection of related projects, or to create nested groups as part of your release workflow.

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Group Name	Name of the new group to create.	devops-team
Group Path	URL path for the group (unique, lowercase, no spaces).	devops-team
Group Description	(Optional) Description for the group.	Team for DevOps tools
Group Visibility	Visibility of the group: public, internal, or private.	private
Parent ID	(Optional) Parent group ID for creating a nested group.	1234

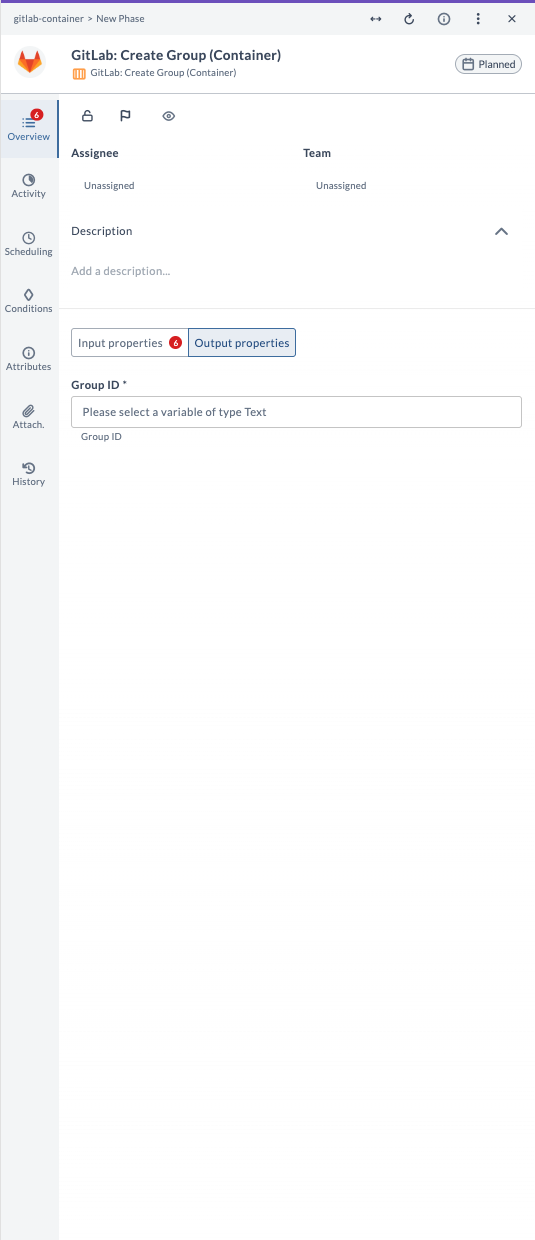

Output Field Descriptions

Field Name	Description	Example
Group ID	Numeric ID of the created group (Text).	5678

Example Usage

Suppose you want to create a new private group called devops-team with path devops-team and description Team for DevOps tools:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Group Name	devops-team
Group Path	devops-team
Group Description	Team for DevOps tools
Group Visibility	private
Parent ID	(leave blank)

The output field Group ID will contain the numeric ID of the created group.

Create Merge Request (Container)

This task creates a new merge request in a GitLab project. Use it to propose changes from one branch to be merged into another, often involving code review and approval processes as part of your release workflow.

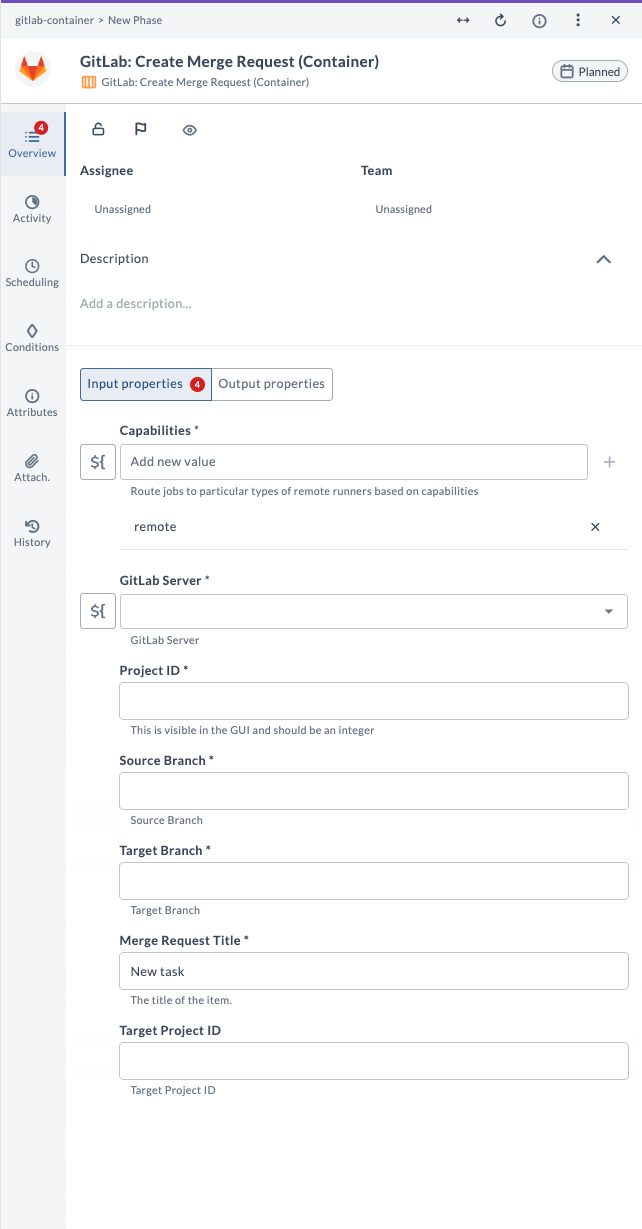

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Project ID	Numeric ID of the GitLab project. Do not use the project name.	12345
Source Branch	Name of the branch containing your changes.	feature/new-feature
Target Branch	Name of the branch you want to merge into.	main
Merge Request Title	Title for the new merge request.	New task
Target Project ID	(Optional) Numeric ID of the target project for cross-project merge.	67890

Output Field Descriptions

Field Name	Description	Example
Merge Request ID	Numeric ID of the created merge request.	42

Example Usage

Suppose you want to create a merge request from feature/new-feature to main in project ID 12345 with the title New task:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Project ID	12345
Source Branch	feature/new-feature
Target Branch	main
Merge Request Title	New task
Target Project ID	(leave blank)

The output field Merge Request ID will contain the numeric ID of the created merge request.

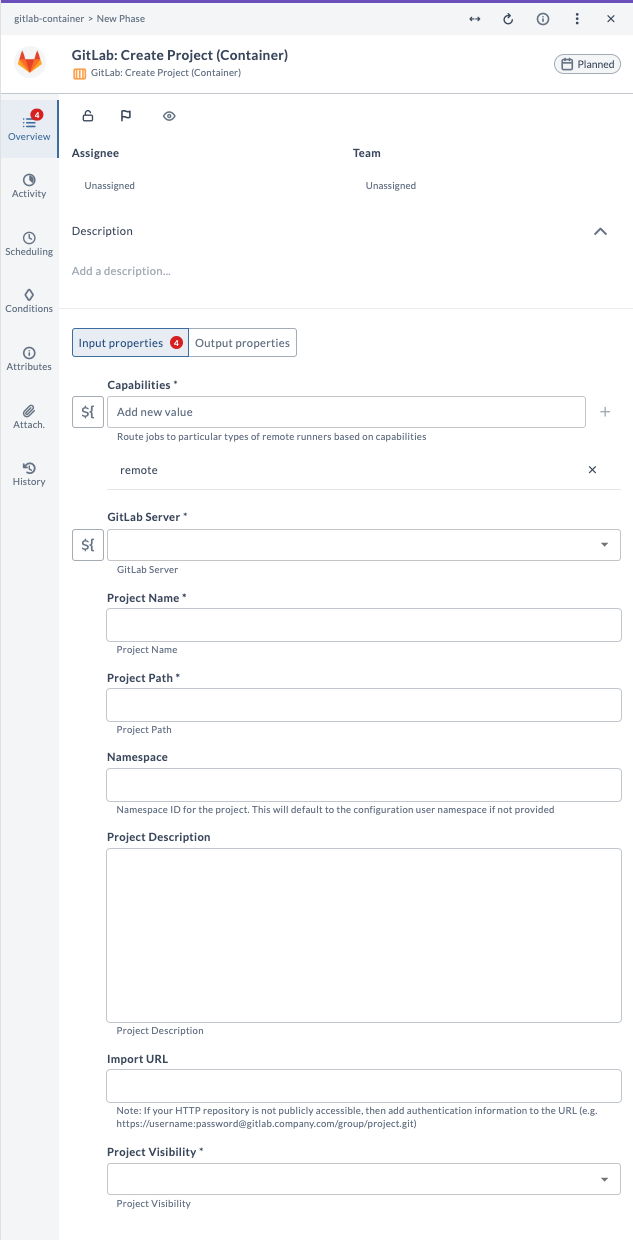

Create Project (Container)

This task creates a new project in GitLab. Use it to automate the creation of new repositories as part of your release workflow, including setting up visibility, importing from another repository, and organizing under a namespace.

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Project Name	Name of the new project to create.	my-new-project
Project Path	URL path for the project (unique, lowercase, no spaces).	my-new-project
Namespace	(Optional) Namespace ID for the project.	1234
Project Description	(Optional) Description for the project.	Project for release
Import URL	(Optional) URL of the repository to import from.	https://.../repo.git
Project Visibility	Visibility of the project: public, internal, or private.	private

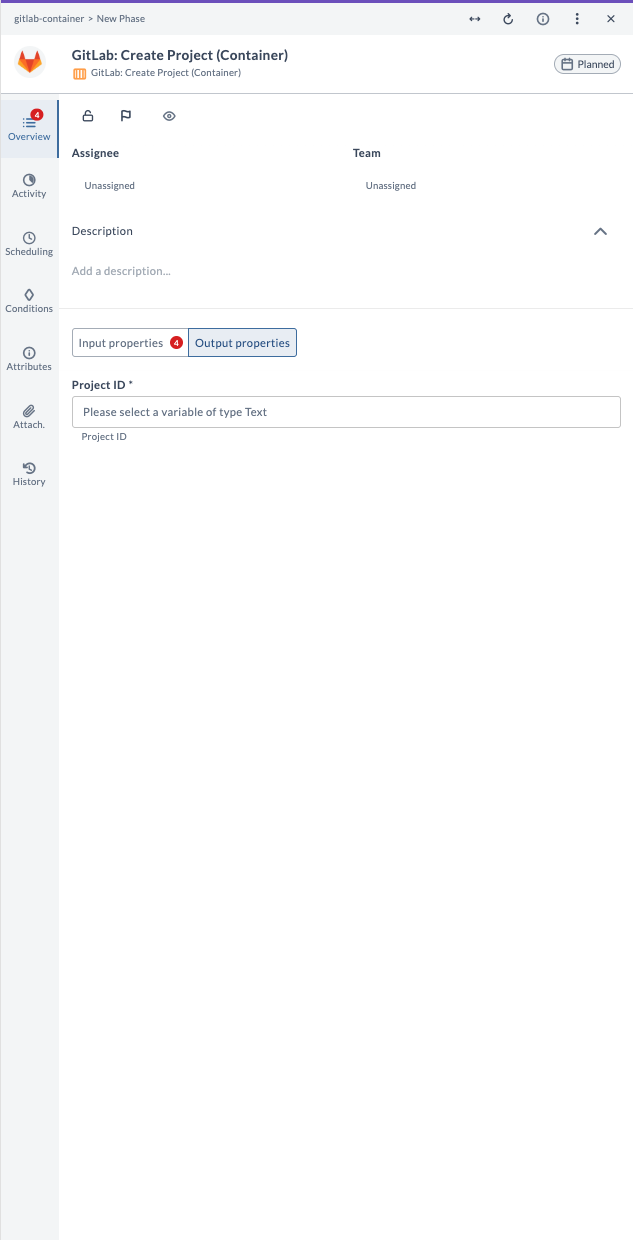

Output Field Descriptions

Field Name	Description	Example
Project ID	Numeric ID of the created project (Text).	9876

Example Usage

Suppose you want to create a new private project called my-new-project with path my-new-project and description Project for release:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Project Name	my-new-project
Project Path	my-new-project
Namespace	(leave blank)
Project Description	Project for release
Import URL	(leave blank)
Project Visibility	private

The output field Project ID will contain the numeric ID of the created project.

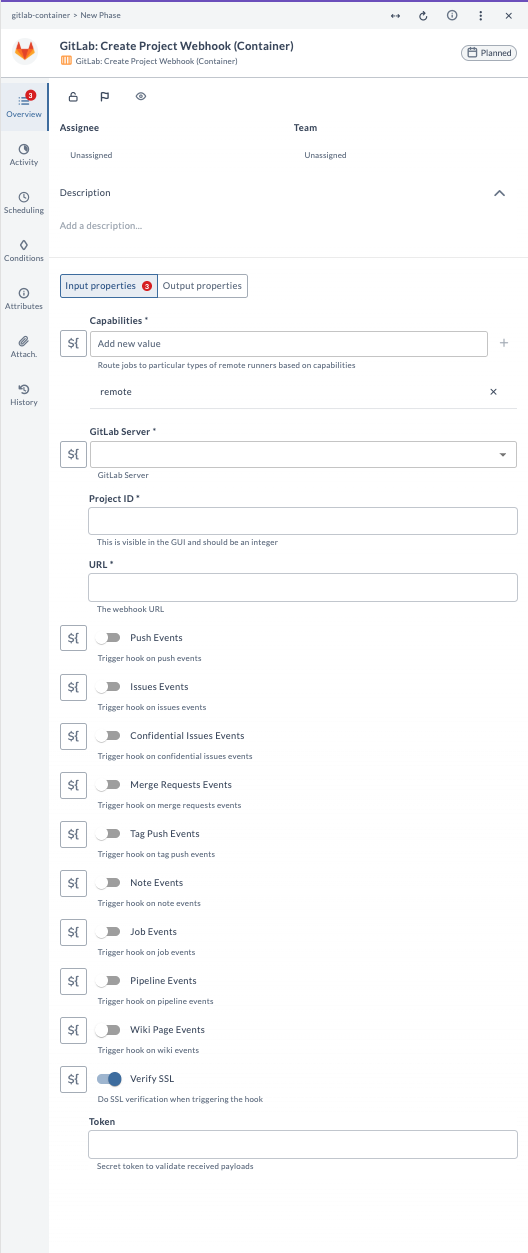

Create Project Webhook (Container)

This task creates a new project webhook in GitLab. Use it to set up notifications for specific events occurring in a project, such as commits, merges, issues, pipelines, and more, as part of your release workflow.

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Project ID	Numeric ID of the GitLab project. Do not use the project name.	12345
URL	The webhook URL to receive event notifications.	https://.../webhook
Push Events	Trigger hook on push events.	true
Issue Events	Trigger hook on issue events.	false
Confidential Issues Events	Trigger hook on confidential issue events.	false
Merge Requests Events	Trigger hook on merge request events.	true
Tag Push Events	Trigger hook on tag push events.	false
Note Events	Trigger hook on note events.	false
Job Events	Trigger hook on job events.	false
Pipeline Events	Trigger hook on pipeline events.	true
Wiki Page Events	Trigger hook on wiki events.	false
Verify SSL	Do SSL verification when triggering the hook.	true
Token	(Optional) Secret token to validate received payloads.	my-secret-token

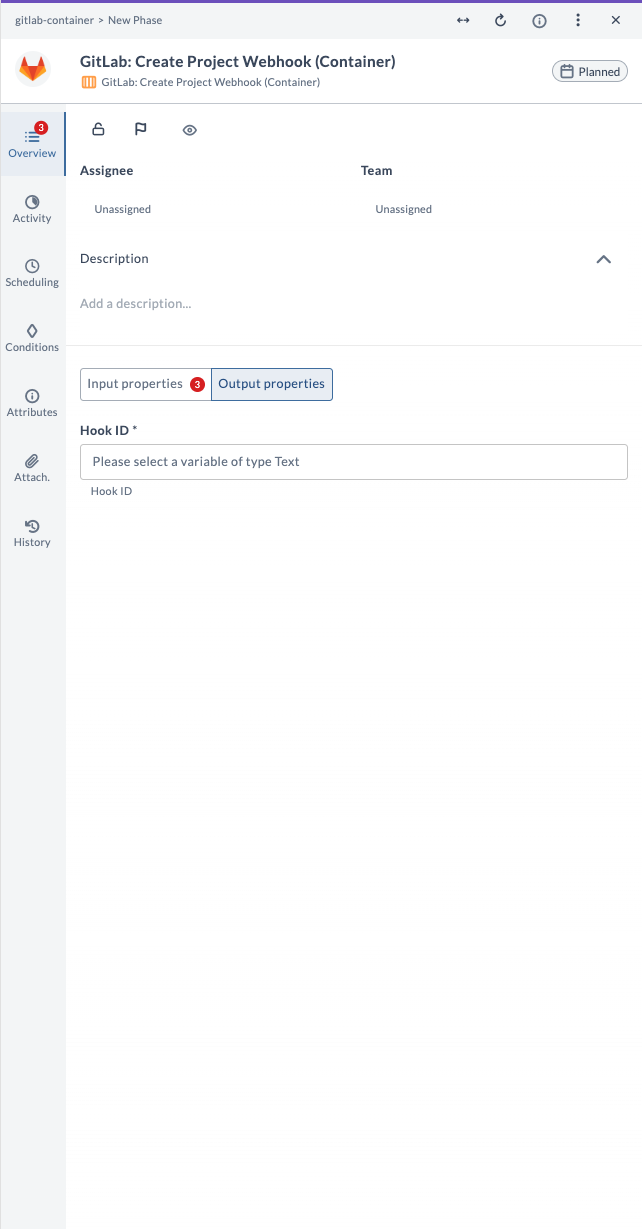

Output Field Descriptions

Field Name	Description	Example
Hook ID	Numeric ID of the created webhook (Text).	2468

Example Usage

Suppose you want to create a webhook for project ID 12345 that triggers on push, merge request, and pipeline events, with SSL verification enabled:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Project ID	12345
URL	https://.../webhook
Push Events	true
Merge Requests Events	true
Pipeline Events	true
Verify SSL	true
Token	my-secret-token

The output field Hook ID will contain the numeric ID of the created webhook.

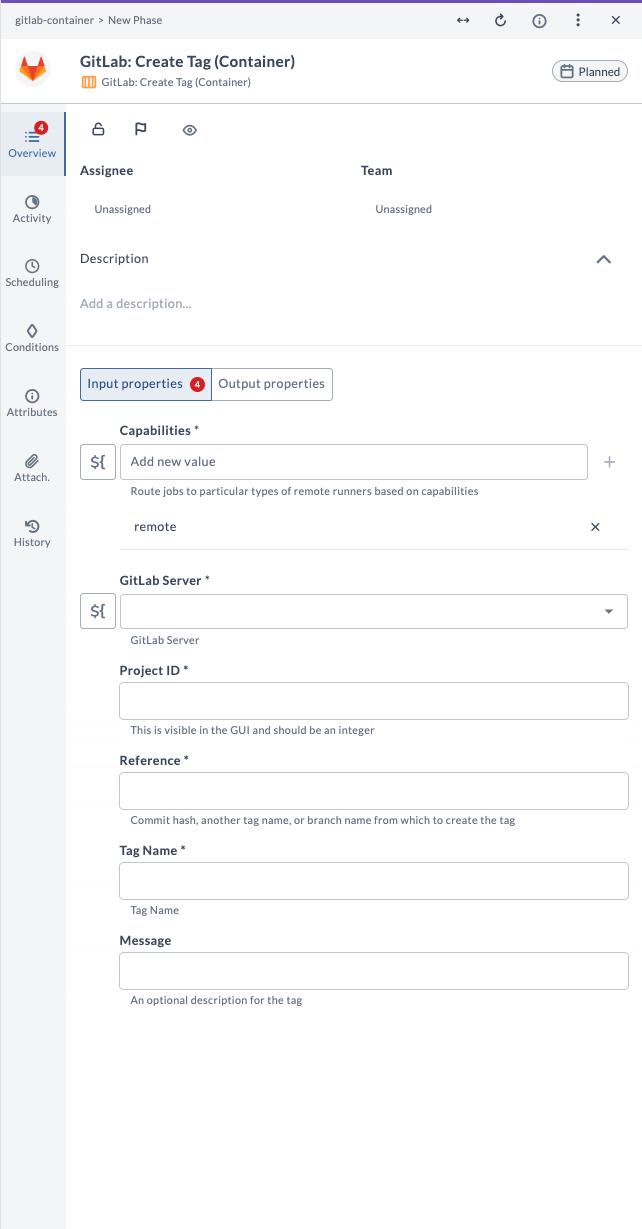

Create Tag (Container)

This task creates a new tag in a GitLab project. Use it to mark a specific point in the repository history, such as for releases or significant milestones, as part of your release workflow.

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Project ID	Numeric ID of the GitLab project. Do not use the project name.	12345
Reference	Commit hash, another tag name, or branch name from which to create the tag.	main
Tag Name	Name of the tag to create.	v1.0.0
Message	(Optional) Description for the tag.	Release v1.0.0

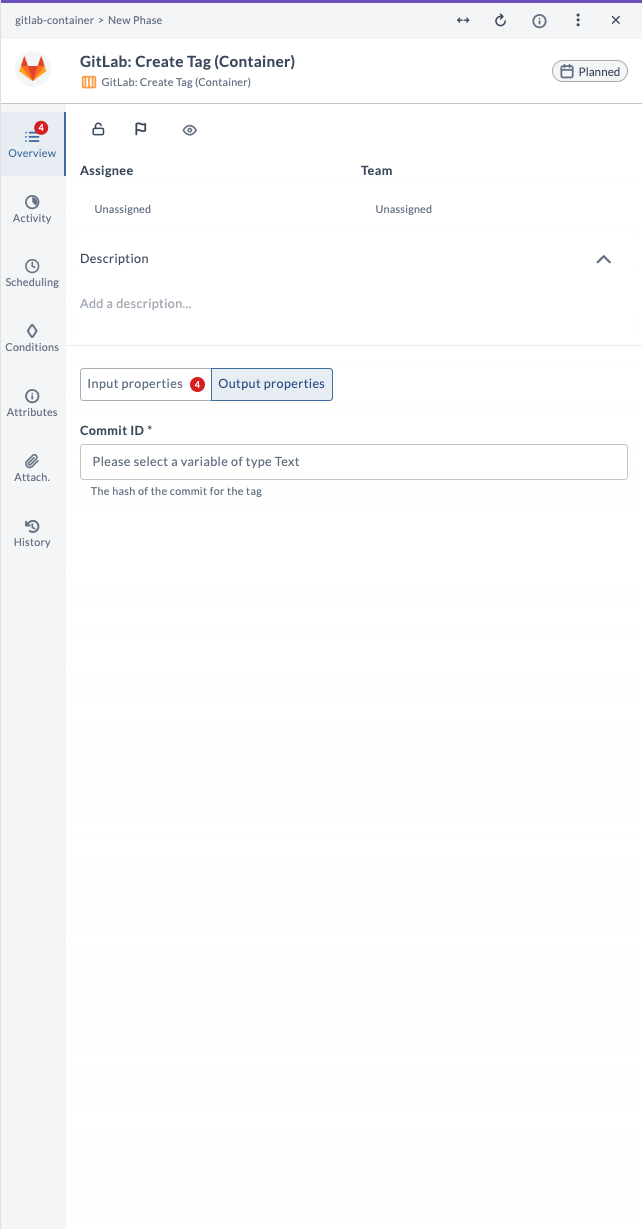

Output Field Descriptions

Field Name	Description	Example
Commit ID	The hash of the commit for the tag (Text).	1a2b3c4d5e6f...

Example Usage

Suppose you want to create a tag called v1.0.0 from the main branch in project ID 12345 with the message Release v1.0.0:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Project ID	12345
Reference	main
Tag Name	v1.0.0
Message	Release v1.0.0

The output field Commit ID will contain the hash of the commit for the tag.

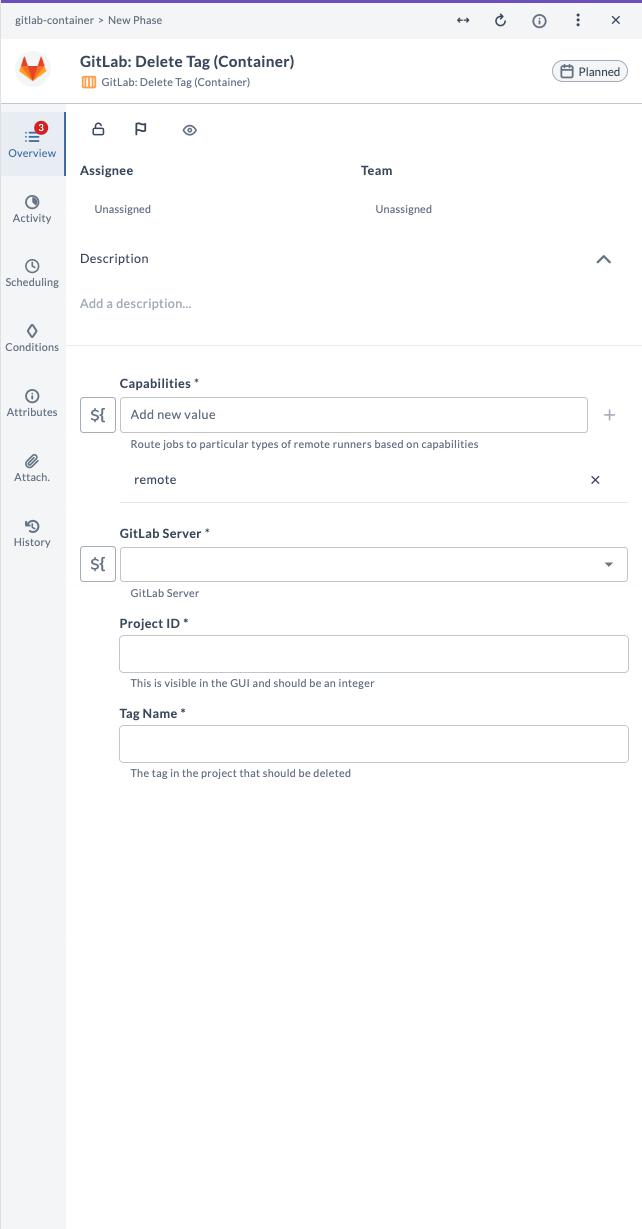

Delete Tag (Container)

This task deletes a tag from a GitLab project. Use it to remove a tag from the repository, often when it is no longer relevant or was created by mistake, as part of your release workflow.

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Project ID	Numeric ID of the GitLab project. Do not use the project name.	12345
Tag Name	The tag in the project that should be deleted.	v1.0.0

Example Usage

Suppose you want to delete the tag v1.0.0 from project ID 12345:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Project ID	12345
Tag Name	v1.0.0

This will delete the specified tag from the project repository.

Query Commits (Container)

This task queries the commit history within a GitLab project. Use it to retrieve a list of commits for a specific branch, with an optional limit on the number of results, as part of your release workflow.

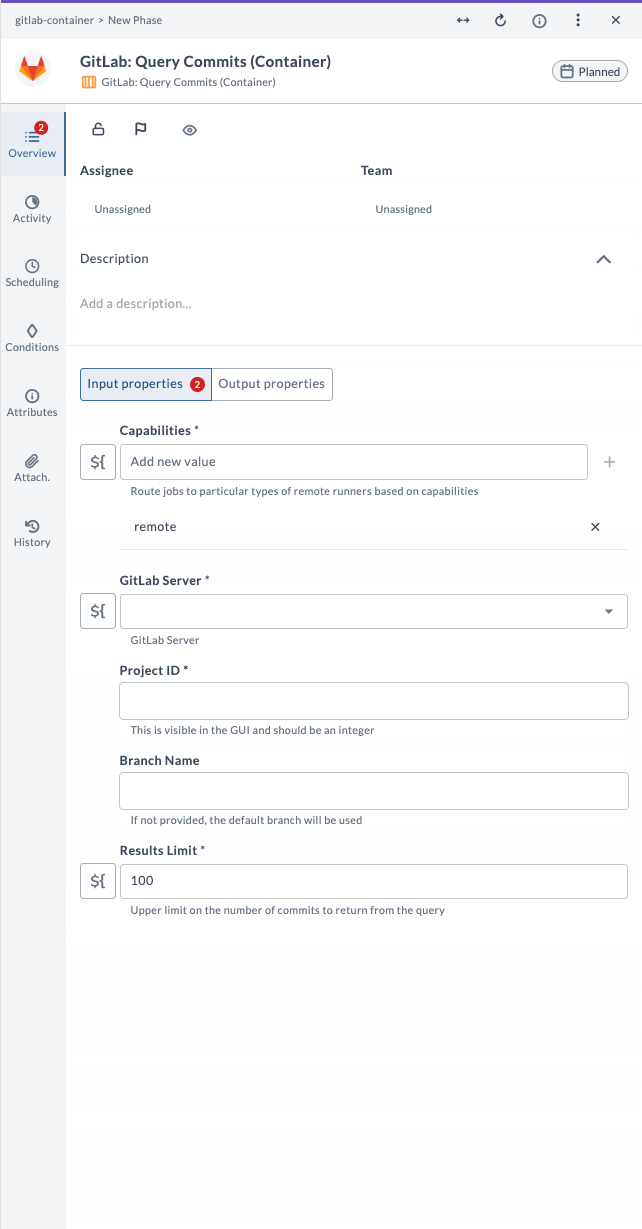

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Project ID	Numeric ID of the GitLab project. Do not use the project name.	12345
Branch Name	(Optional) Name of the branch to query commits from. Defaults to main branch.	main
Results Limit	Upper limit on the number of commits to return from the query.	100

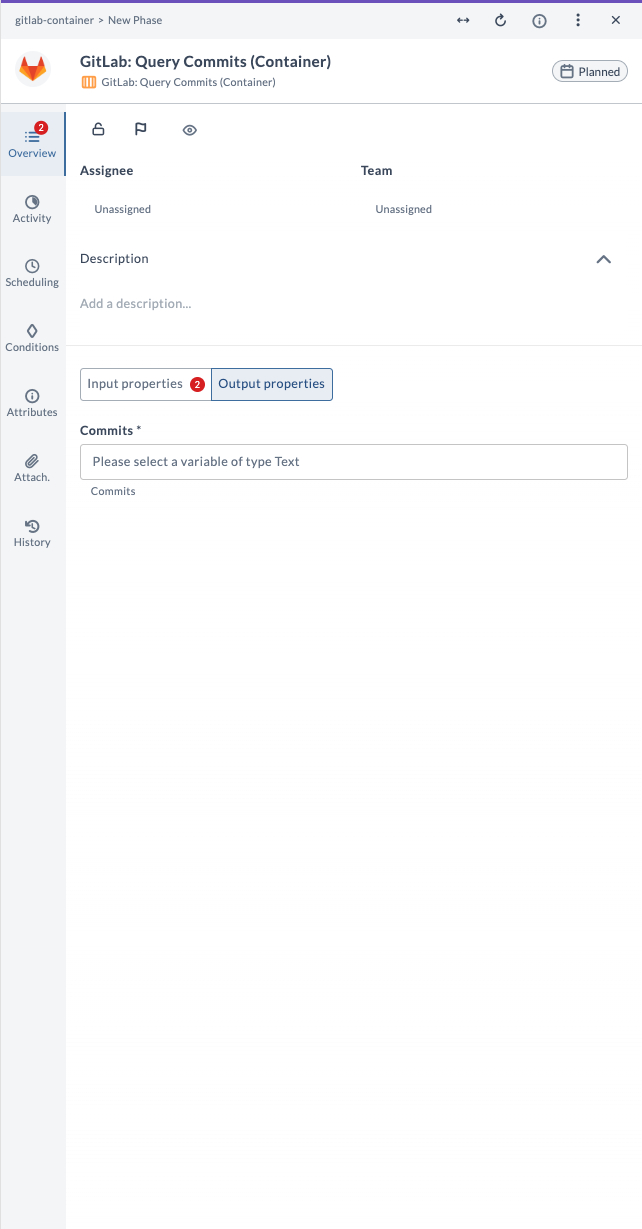

Output Field Descriptions

Field Name	Description	Example
Commits	The list of commits returned by the query.	[commit data as text]

Example Usage

Suppose you want to query the latest 100 commits from the main branch in project ID 12345:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Project ID	12345
Branch Name	main
Results Limit	100

The output field Commits will contain the list of commits returned by the query.

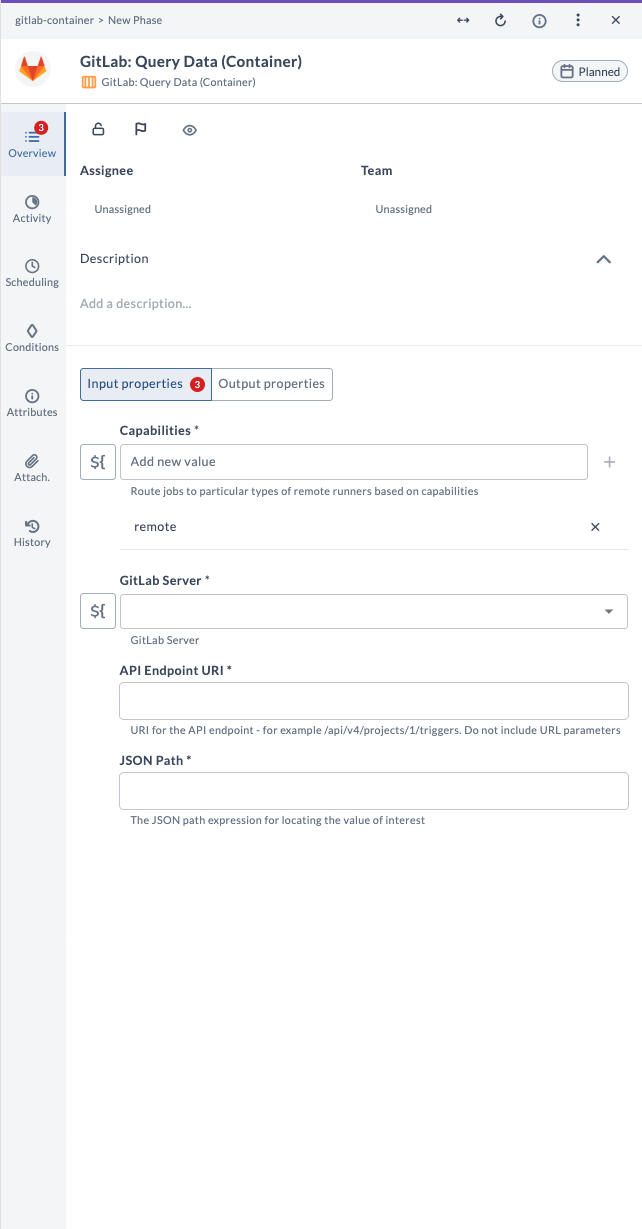

Query Data (Container)

This task queries general data from a GitLab project or repository using a specified API endpoint and JSON path. Use it to fetch metrics, logs, or other data as part of your release workflow.

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
API Endpoint URI	URI for the API endpoint (do not include URL parameters).	/api/v4/projects/1/triggers
JSON Path	The JSON path expression for locating the value of interest.	$.triggers[0].id

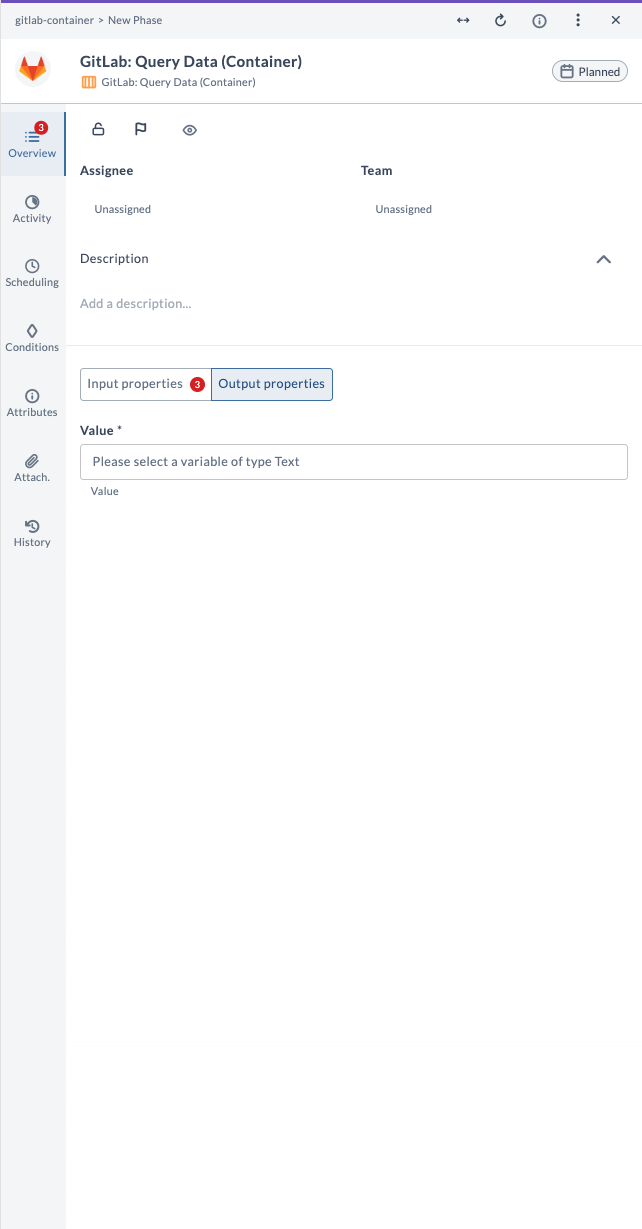

Output Field Descriptions

Field Name	Description	Example
Value	The value extracted from the API response.	12345

Example Usage

Suppose you want to query the first trigger ID from project ID 1:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
API Endpoint URI	/api/v4/projects/1/triggers
JSON Path	$.triggers[0].id

The output field Value will contain the value extracted from the API response using the specified JSON path.

Query Merge Requests (Container)

This task queries merge requests in a GitLab project. Use it to retrieve a list of merge requests, with options to filter, sort, and limit the results, as part of your release workflow.

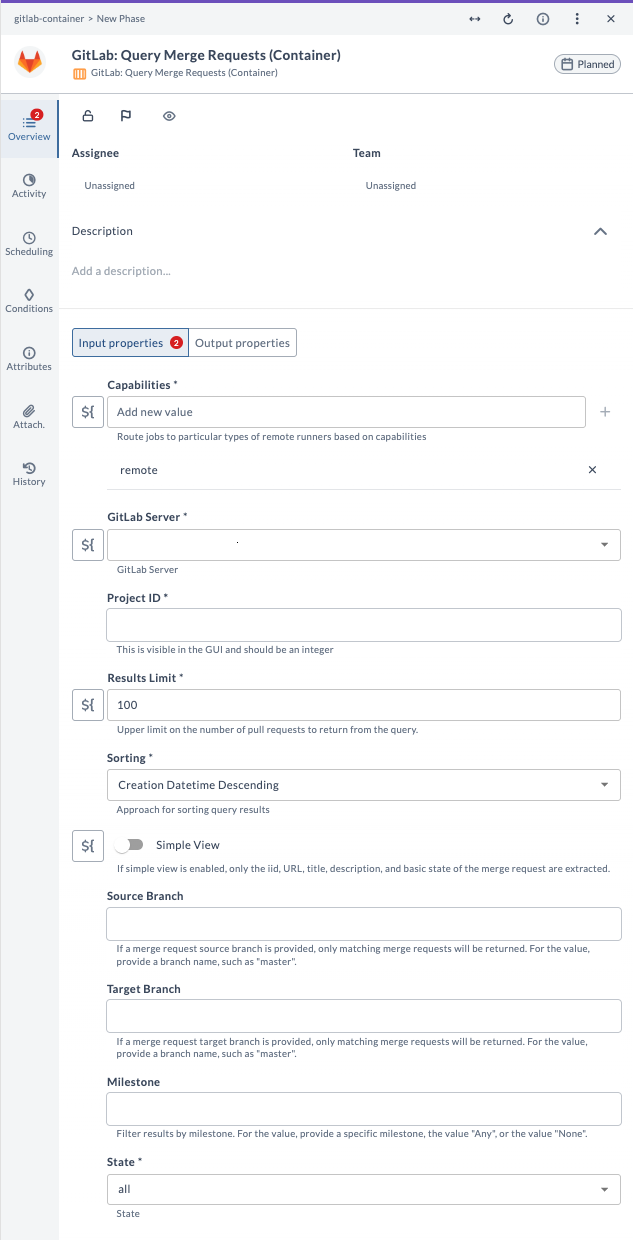

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Project ID	Numeric ID of the GitLab project. Do not use the project name.	12345
Results Limit	Upper limit on the number of merge requests to return from the query.	100
Sorting	Approach for sorting query results.	Creation Datetime Descending
Simple View	If enabled, only basic merge request info is extracted.	true
Source Branch	(Optional) Only merge requests from this source branch will be returned.	feature-branch
Target Branch	(Optional) Only merge requests to this target branch will be returned.	main
Milestone	(Optional) Filter results by milestone.	v1.0.0
State	(Optional) Filter by merge request state (for example, opened, closed, merged).	all

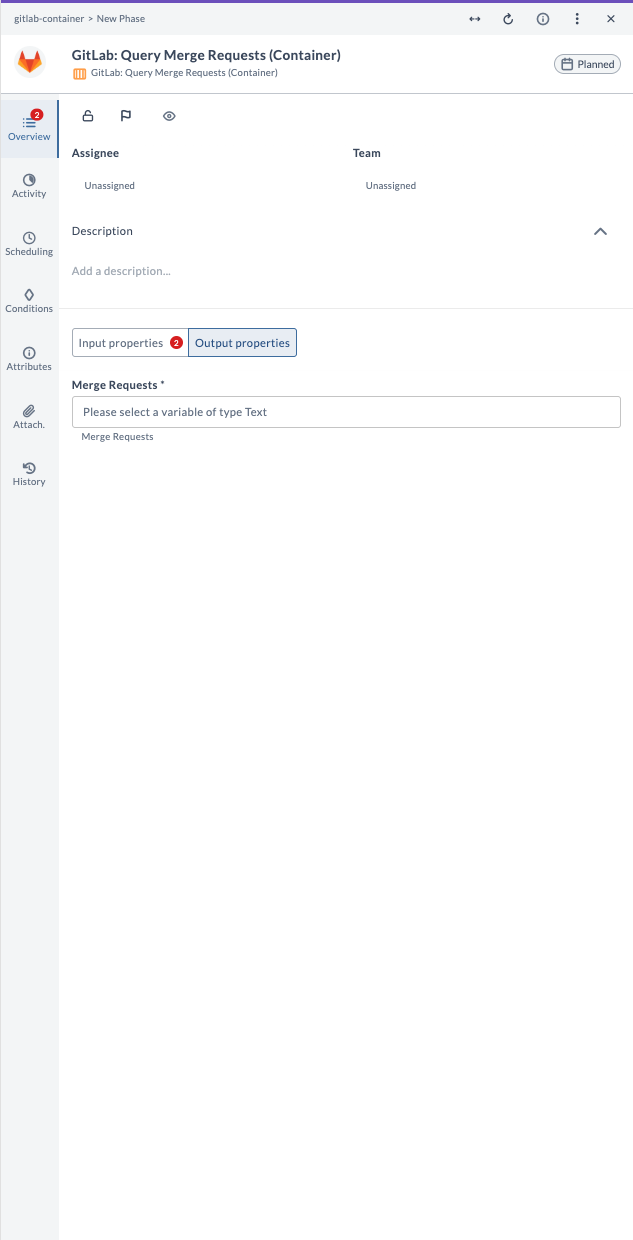

Output Field Descriptions

Field Name	Description	Example
Merge Requests	The list of merge requests returned by the query.	[merge request data as text]

Example Usage

Suppose you want to query the latest 100 merge requests from project ID 12345, sorted by creation date descending, and only those targeting the main branch:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Project ID	12345
Results Limit	100
Sorting	Creation Datetime Descending
Target Branch	main
State	all

The output field Merge Requests will contain the list of merge requests returned by the query.

Query Pipelines (Container)

This task queries CI/CD pipelines in a GitLab project. Use it to fetch information about pipelines, including their statuses and results, as part of your release workflow.

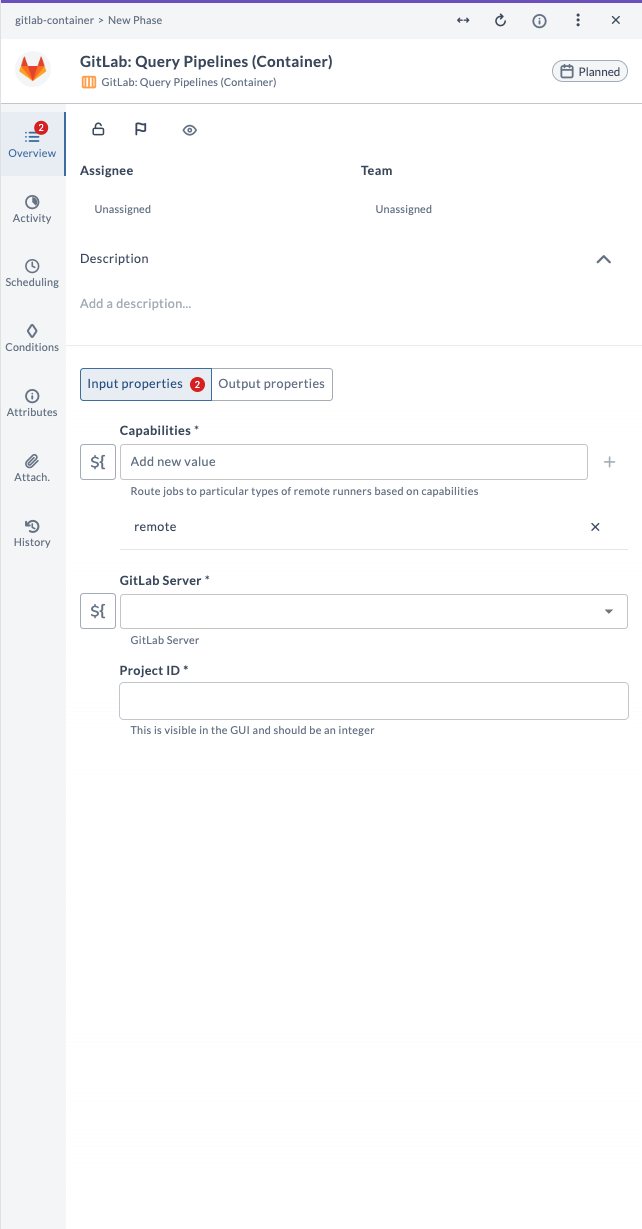

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Project ID	Numeric ID of the GitLab project. Do not use the project name.	12345

Output Field Descriptions

Field Name	Description	Example
Pipelines	The list of pipelines returned by the query.	[pipeline data as text]

Example Usage

Suppose you want to query all pipelines for project ID 12345:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Project ID	12345

The output field Pipelines will contain the list of pipelines returned by the query.

Query Pipeline Status (Container)

This task queries the status of a specific pipeline run in a GitLab project. Use it to check the current state and results of a pipeline, as part of your release workflow.

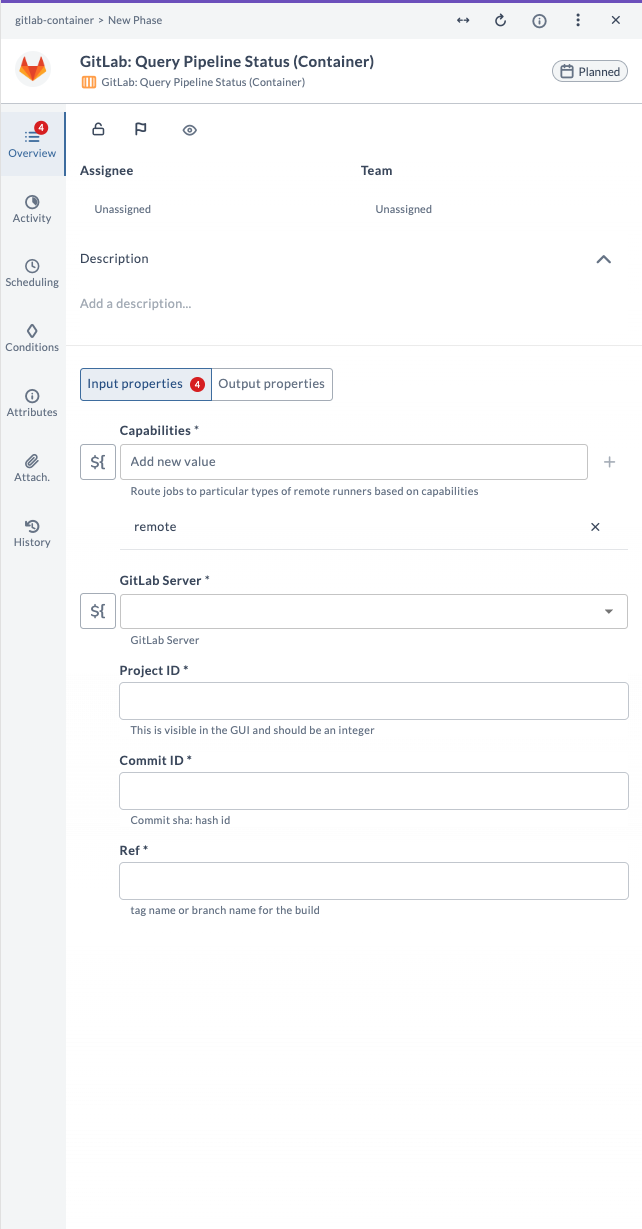

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Project ID	Numeric ID of the GitLab project. Do not use the project name.	12345
Commit ID	Commit SHA (hash id) for the pipeline.	1a2b3c4d5e6f...
Ref	Tag name or branch name for the build.	main

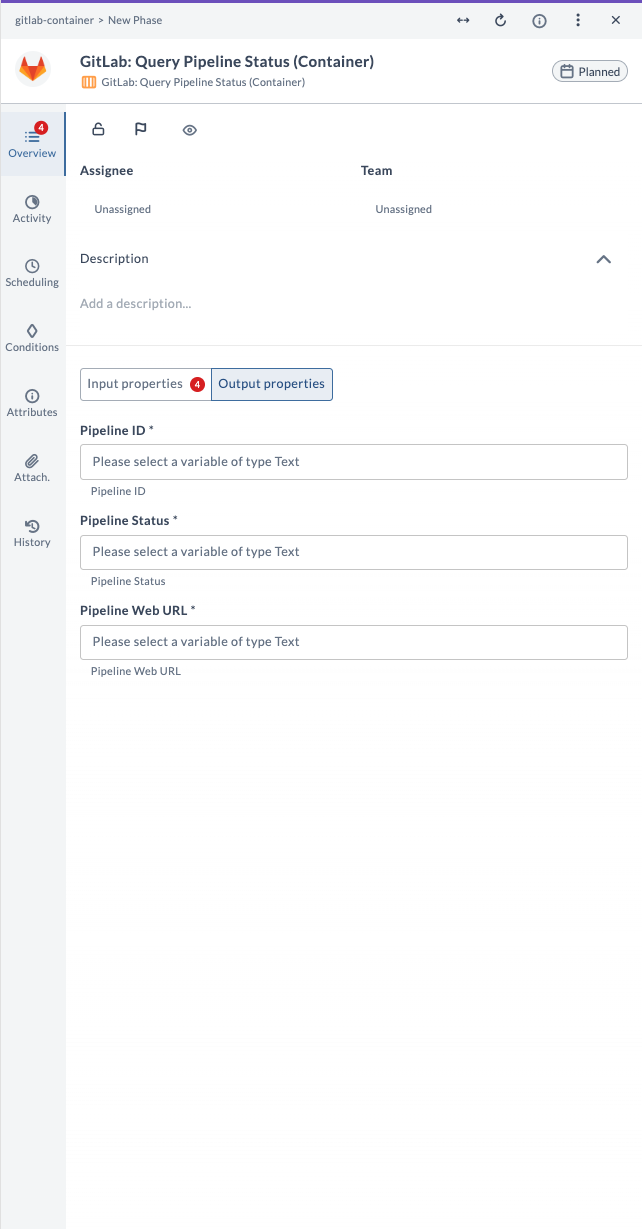

Output Field Descriptions

Field Name	Description	Example
Pipeline ID	The numeric ID of the pipeline.	7890
Pipeline Status	The current status of the pipeline.	success
Pipeline Web URL	The web URL to view the pipeline in GitLab.	https://.../pipelines/7890

Example Usage

Suppose you want to check the status of a pipeline for commit 1a2b3c4d5e6f... on the main branch in project ID 12345:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Project ID	12345
Commit ID	1a2b3c4d5e6f...
Ref	main

The output fields will provide the pipeline ID, its current status, and a web URL to view the pipeline in GitLab.

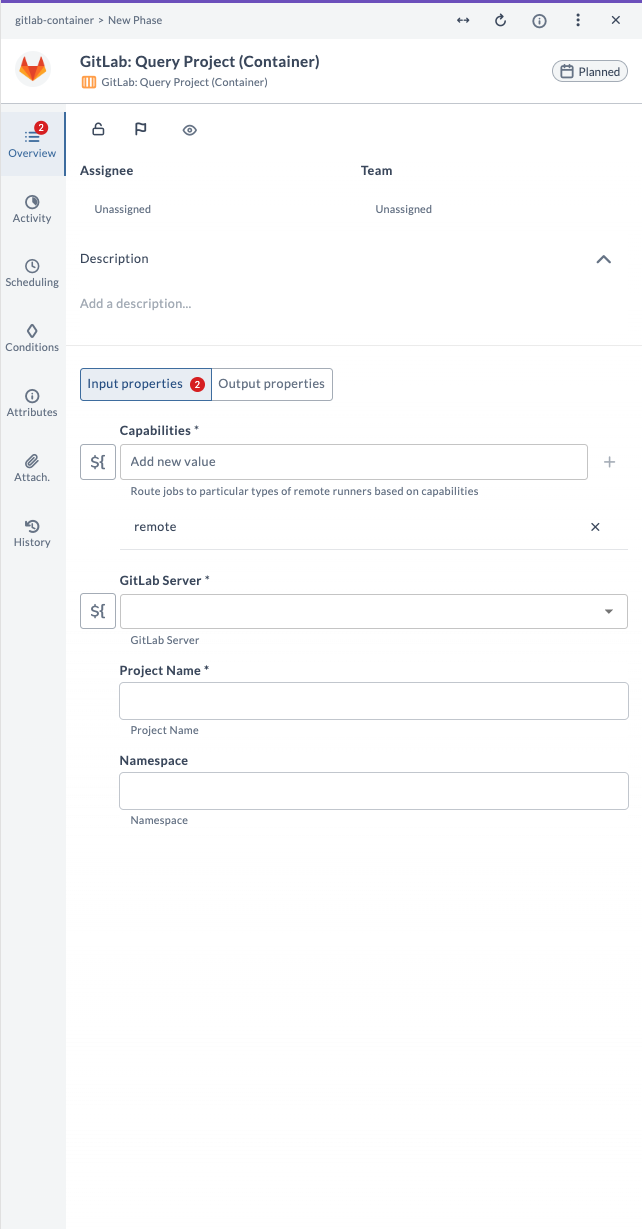

Query Project (Container)

This task queries a GitLab project. Use it to retrieve details about a specific project, such as its settings, members, and activity, as part of your release workflow.

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Project Name	Name of the GitLab project to query.	my-project
Namespace	(Optional) Namespace of the project.	my-group

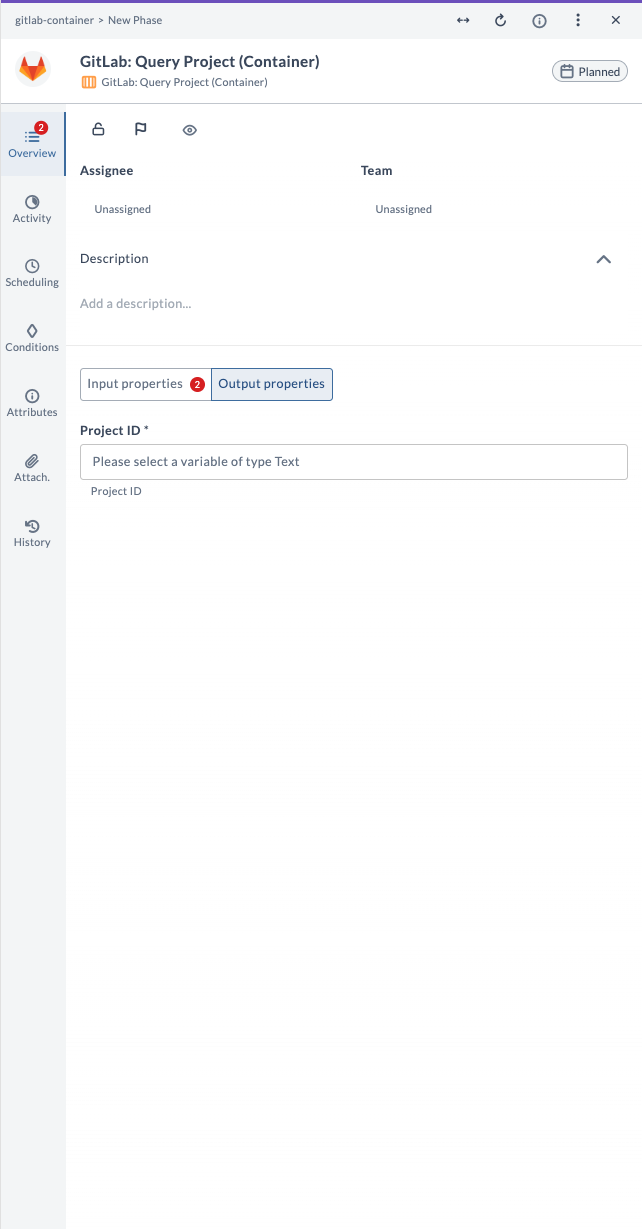

Output Field Descriptions

Field Name	Description	Example
Project ID	The numeric ID of the queried project.	12345

Example Usage

Suppose you want to query the project named my-project in the namespace my-group:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Project Name	my-project
Namespace	my-group

The output field Project ID will contain the numeric ID of the queried project.

Query Secure Data (Container)

This task queries secure or protected data from a GitLab project using a specified API endpoint and JSON path. Use it to fetch sensitive information with appropriate access controls as part of your release workflow.

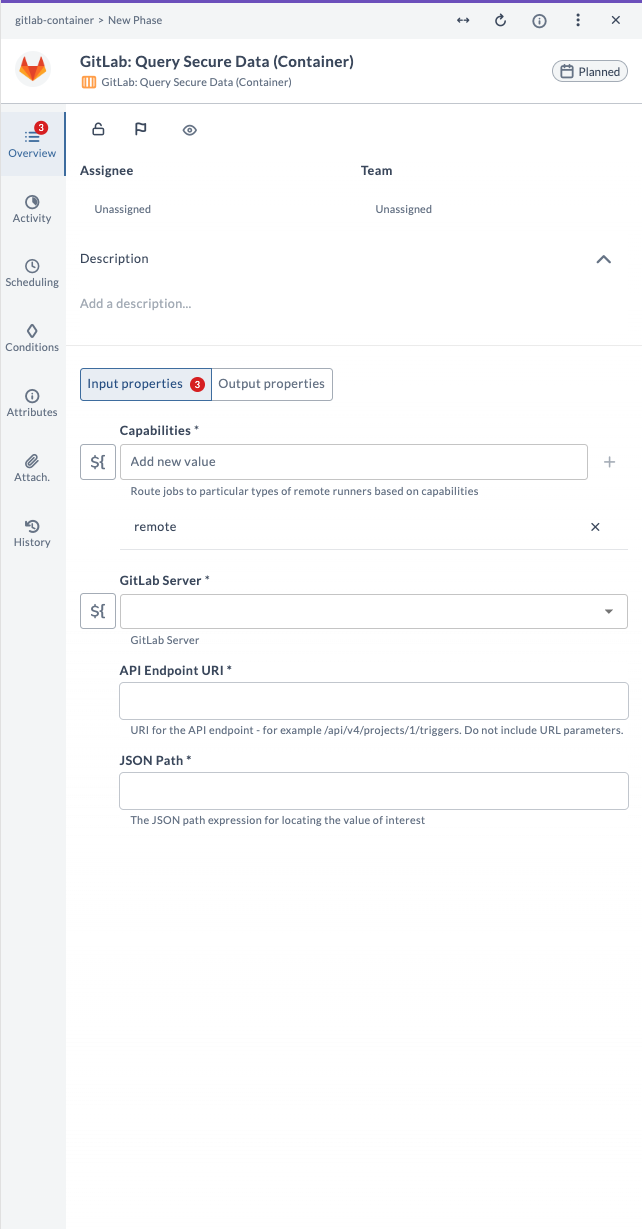

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
API Endpoint URI	URI for the API endpoint (do not include URL parameters).	/api/v4/projects/1/variables
JSON Path	The JSON path expression for locating the value of interest.	$.variables[0].value

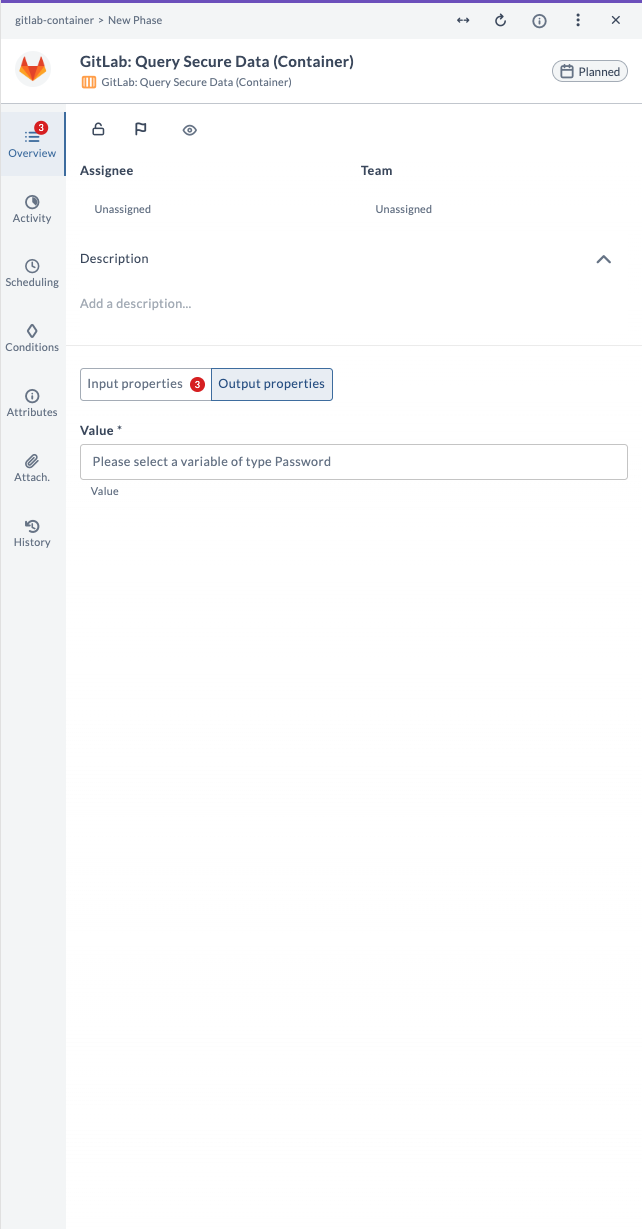

Output Field Descriptions

Field Name	Description	Example
Value	The secure value extracted from the API response.	my-secret-value

Example Usage

Suppose you want to query the first variable value from project ID 1:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
API Endpoint URI	/api/v4/projects/1/variables
JSON Path	$.variables[0].value

The output field Value will contain the secure value extracted from the API response using the specified JSON path.

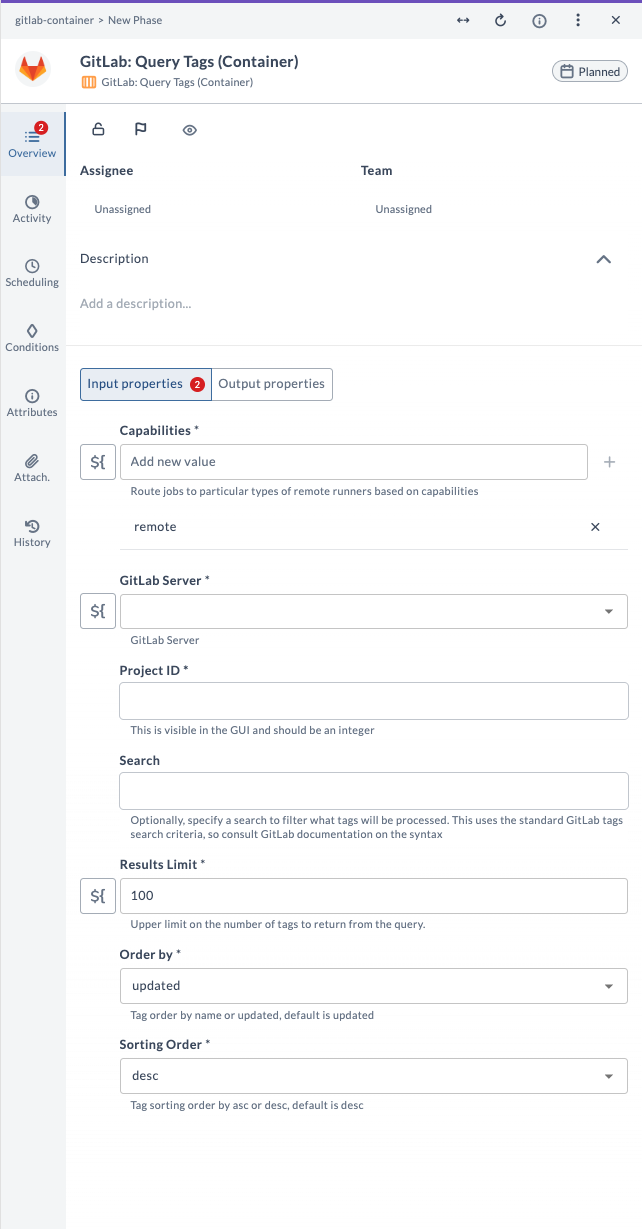

Query Tags (Container)

This task queries tags in a GitLab project. Use it to list all tags in a repository, with options to filter, sort, and limit the results, as part of your release workflow.

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Project ID	Numeric ID of the GitLab project. Do not use the project name.	12345
Search	(Optional) Search criteria to filter tags.	v1.0
Results Limit	Upper limit on the number of tags to return from the query.	100
Order by	Tag order by name or updated. Default is updated.	updated
Sorting Order	Tag sorting order by asc or desc. Default is desc.	desc

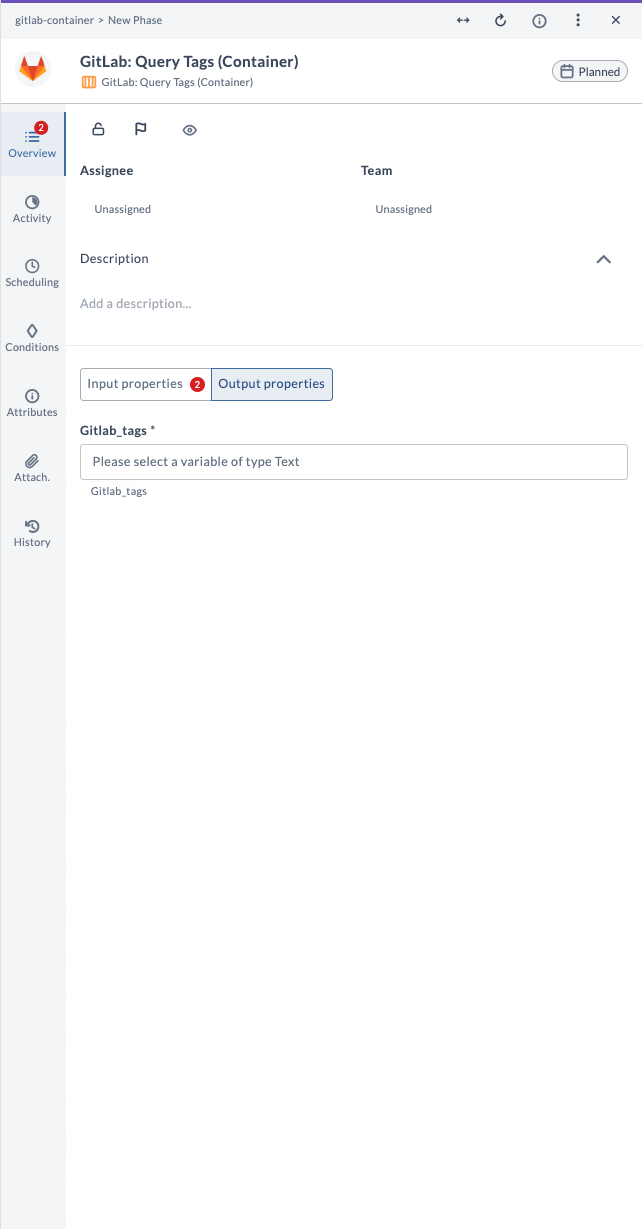

Output Field Descriptions

Field Name	Description	Example
Gitlab_tags	The list of tags returned by the query.	[tag data as text]

Example Usage

Suppose you want to query the latest 100 tags from project ID 12345, ordered by update time descending:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Project ID	12345
Results Limit	100
Order by	updated
Sorting Order	desc

The output field Gitlab_tags will contain the list of tags returned by the query.

Trigger Pipeline (Container)

This task triggers a new CI/CD pipeline run for a GitLab project. Use it to start a pipeline after a commit, merge, or other event as part of your release workflow, using a Pipeline Trigger Token (not a Personal Access Token).

important

This task requires a GitLab Pipeline Trigger Token. Do not use a Personal Access Token – the task will fail.

To create a trigger token in GitLab:

1. Go to your GitLab project
2. Navigate to: Settings → CI/CD → Pipeline triggers
3. Click Add trigger
4. Copy the generated token and keep it handy

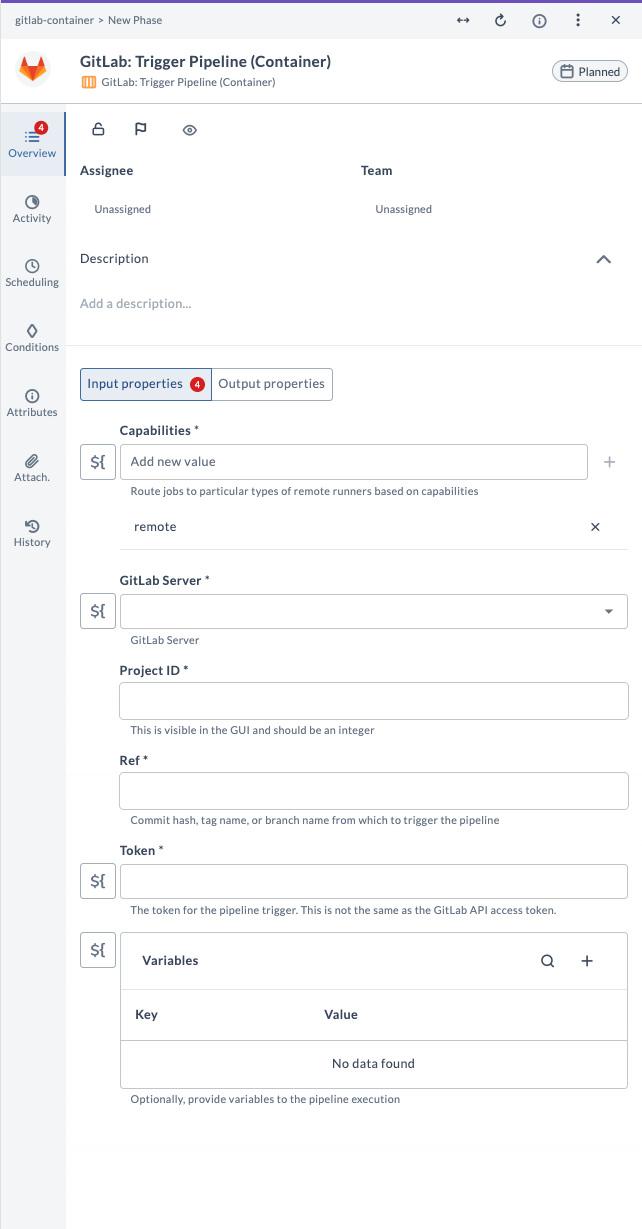

Input Field Descriptions

Field Name	Description	Example
Capabilities	Route jobs to particular types of Release runners based on capabilities.	remote
GitLab Server	The configured GitLab server connection to use.	gitlab.example.com
Project ID	Numeric ID of the GitLab project. Do not use the project name.	12345
Ref	Commit hash, tag name, or branch name from which to trigger the pipeline.	main
Token	The token for the pipeline trigger (not the API access token).	my-trigger-token
Variables	(Optional) Key-value pairs to provide variables to the pipeline execution (for example, key1: value1, key2: value2).	key1: value1

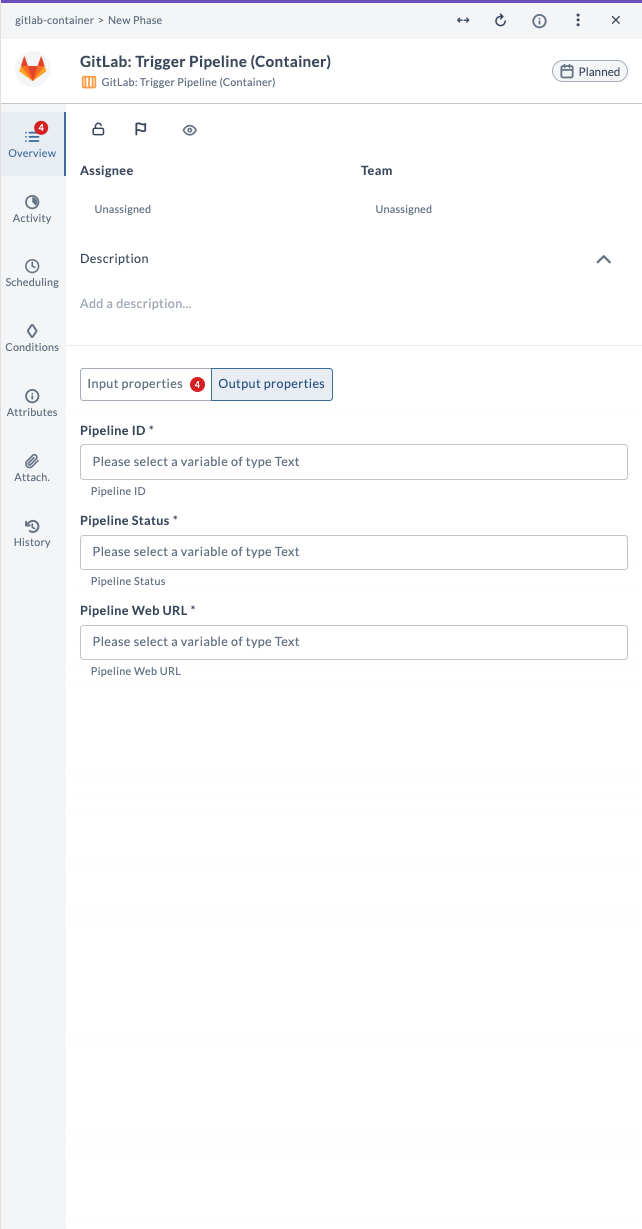

Output Field Descriptions

Field Name	Description	Example
Pipeline ID	The numeric ID of the triggered pipeline.	7890
Pipeline Status	The current status of the triggered pipeline.	pending
Pipeline Web URL	The web URL to view the pipeline in GitLab.	https://.../pipelines/7890

Example Usage

Suppose you want to trigger a pipeline for the main branch in project ID 12345 with a trigger token and a variable:

Field	Value
Capabilities	remote
GitLab Server	gitlab.example.com
Project ID	12345
Ref	main
Token	my-trigger-token
Variables	key1: value1

The output fields will provide the pipeline ID, its current status, and a web URL to view the pipeline in GitLab.

Related Links

• Overview of Release Runner
• Mapping Task Output Properties to Variables
