AWS Container Plugin

The AWS container plugin allows you to create, update, invoke, and delete Lambda functions using packages such as .zip files or container images.

important

You must set up a connection to the AWS server before adding AWS tasks. For more information, see Set up Connection to AWS Server.

note

In the release flow editor, Container tasks have a blue border.

AWS provides the following features:

• Create Function and Update Function using Image
• Create Function and Update Function using S3 zip
• Delete Function and Invoke Function
• Create Secret (Container)
• Get Secret (Container)
• Update Secret (Container)
• Delete Secret (Container)

Prerequisites

For AWS integration, you need the following:

• AWS server running and accessible via HTTP(s)
• Digital.ai Release Runner setup to run the container tasks

Set Up Connection to AWS Server

1. From the navigation pane, under CONFIGURATION, click Connections.
2. Under HTTP Server connections, next to AWS: Server (Container), click . The New AWS: Server (Container) page opens.
3. In the Title field, enter a name for the configuration.
4. In the Authentication method dropdown, select an authentication method:
   • Access Keys: Enter the following details:
     • Access Key ID: The AWS access key ID.
     • Secret Access Key: The AWS secret access key.
     • Session Token (optional): The session token if applicable.
   • None: Credentials will be automatically retrieved from the IAM role assigned to the pod or node.
5. In the Assume Role ARN (optional) field, enter the ARN of the assume role that the caller is assuming.
6. If required, enter proxy details.
7. To test the connection, click Test.
8. To save the configuration, click Save.

Create Function Using Image (Container)

The Create Function Using Image (Container) task creates a Lambda function using the image.

In the release flow tab of a Release template, add a task of type AWS > Create Function Using Image (Container).

Field	Description
Capabilities	Enter a value that matches the capability set for your Runner. This helps route jobs to that Runner.
AWS Server	Select the configured AWS server.
Region	Enter the AWS region to be used.
Function Name	Enter the AWS Lambda function name.
Function Description	Enter a description for the AWS Lambda function.
Role	Enter the Amazon Resource Name (ARN) of the IAM role.
Image Uri	Enter the URI of a container image in the Amazon ECR registry.
Wait for Active State	Toggle on if you want to wait for the function to become active.
Wait Interval	Enter the interval in seconds between each attempt.
ENTRYPOINT Override	Enter a value to override the entry point value in the image configuration.
CMD Override	Enter a value to override the cmd value in the image configuration.
WORKDIR Override	Enter a value to override the workdir value in the image configuration.
Subnet Ids	Enter one or more VPC subnet IDs (comma-separated).
Security Group Ids	Enter one or more VPC security group IDs (comma-separated).
Timeout	Enter the timeout in seconds.
Memory Size	Enter the memory capacity for the Lambda function (in MB).
Environment	Add key-value pairs of environment variables accessible from function code during execution.
Publish	Toggle on if you want to publish the first version of the function during creation.
Tags	Add key-value pairs of tags assigned to the new function.

Update Function Using Image (Container)

The Update Function Using Image (Container) task updates a Lambda function using the image.

In the release flow tab of a Release template, add a task of type AWS > Update Function Using Image (Container).

Field	Description
Capabilities	Enter a value that matches the capability set for your Runner. This helps route jobs to that Runner.
AWS Server	Select the configured AWS server.
Region	Enter the AWS region to be used.
Function Name	Enter the AWS Lambda function name.
Image Uri	Enter the URI of a container image in the Amazon ECR registry.
Wait for Successful Status	Toggle on if you want to wait for the function to get updated and become successful.
Wait Interval	Enter the value in seconds to define the wait interval between each attempt.
Publish	Toggle on if you want to publish the new version of the function after update.

Create Function Using S3 Zip (Container)

The Create Function Using S3 Zip (Container) task creates a Lambda function using the S3 zip.

In the release flow tab of a Release template, add a task of type AWS > Create Function Using S3 Zip (Container).

Field	Description
Capabilities	Enter a value that matches the capability set for your Runner. This helps route jobs to that Runner.
AWS Server	Select the configured AWS server.
Region	Enter the AWS region to be used.
Function Name	Enter the AWS Lambda function name.
Function Description	Enter a description for the AWS Lambda function.
S3 Bucket Name	Enter the S3 bucket name where the .zip file containing your deployment package is stored.
S3 Object Key	Enter the path to your .zip file containing the deployment package.
S3 Object Version	Enter the version of your deployment package.
Runtime	Enter the runtime environment for execution.
Role	Enter the Amazon Resource Name (ARN) of the IAM role.
Handler	Enter the function within your code that Lambda calls to begin execution.
Wait for Active State	Toggle on if you want to wait for the function to become active.
Wait Interval	Enter the value in seconds to define the wait interval between each attempt.
Timeout	Enter the timeout in seconds.
Subnet Ids	Enter one or more VPC subnet IDs (comma-separated).
Security Group Ids	Enter one or more VPC security group IDs (comma-separated).
Memory Size	Enter the memory capacity for the Lambda function (in MB).
Environment	Add key-value pairs of environment variables accessible from function code during execution.
Publish	Toggle on if you want to publish the first version of the function during creation.
Tags	Add key-value pairs of tags assigned to the new function.

Update Function Using S3 Zip (Container)

The Update Function Using S3 Zip (Container) task updates a lambda function using the S3 zip.

In the release flow tab of a Release template, add a task of type AWS > Update Function Using S3 Zip (Container).

Field	Description
Capabilities	Enter a value that matches the capability set for your Runner. This helps route jobs to that Runner.
AWS Server	Select the configured AWS server.
Region	Enter the AWS region to be used.
Function Name	Enter the AWS Lambda function name that must be updated.
S3 Bucket Name	Enter the S3 bucket name where the .zip file containing your deployment package is stored.
S3 Object Key	Enter the path to your .zip file containing the deployment package.
S3 Object Version	Enter the version of your deployment package.
Wait for Successful Status	Toggle on if you want to wait for the function to get updated and become successful.
Wait Interval	Enter the value in seconds to define the wait interval between each attempt.
Publish	Toggle on if you want to publish the new version of the function after update.

Invoke Function (Container)

The Invoke Function Using S3 Zip (Container) task invokes a Lambda function.

In the release flow tab of a Release template, add a task of type AWS > Invoke Function (Container).

Field	Description
Capabilities	Enter a value that matches the capability set for your Runner. This helps route jobs to that Runner.
AWS Server	Select the configured AWS server.
Region	Enter the AWS region to be used.
Function Name	Enter the AWS Lambda function name that you want to invoke.
Invocation Type	Select a type from the drop-down list. This defines how the function is invoked.
Payload	Enter the JSON you want to provide to your Lambda function as input.
Client Context	Enter the value of the client context.
Qualifier	Specify a version or alias to invoke a published version of the function.

Delete Function (Container)

The Delete Function Using S3 Zip (Container) task deletes a Lambda function.

In the release flow tab of a Release template, add a task of type AWS > Delete Function (Container).

Field	Description
Capabilities	Enter a value that matches the capability set for your Runner. This helps route jobs to that Runner.
AWS Server	Select the configured AWS server.
Region	Enter the AWS region to be used.
Function Name	Enter the AWS Lambda function name that you want to delete.
Qualifier	Specify a version of the function that you want to delete.

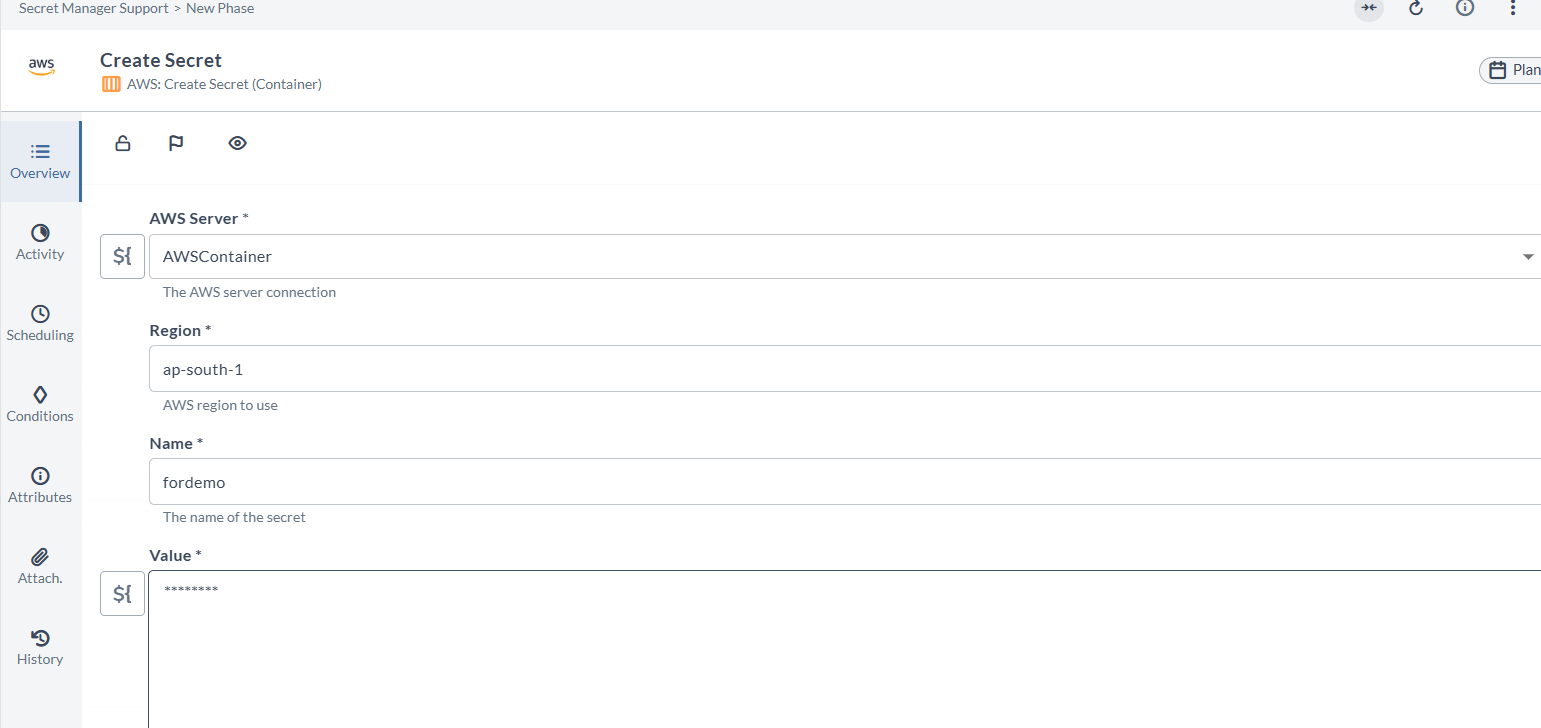

Create Secret (Container)

The Create Secret (Container) task creates a new secret in AWS Secrets Manager.

Field	Description
AWS Server	Select the configured AWS server.
Region	Enter the AWS region to be used.
Name	Enter the name of the secret.
Value	Enter the value of the secret.

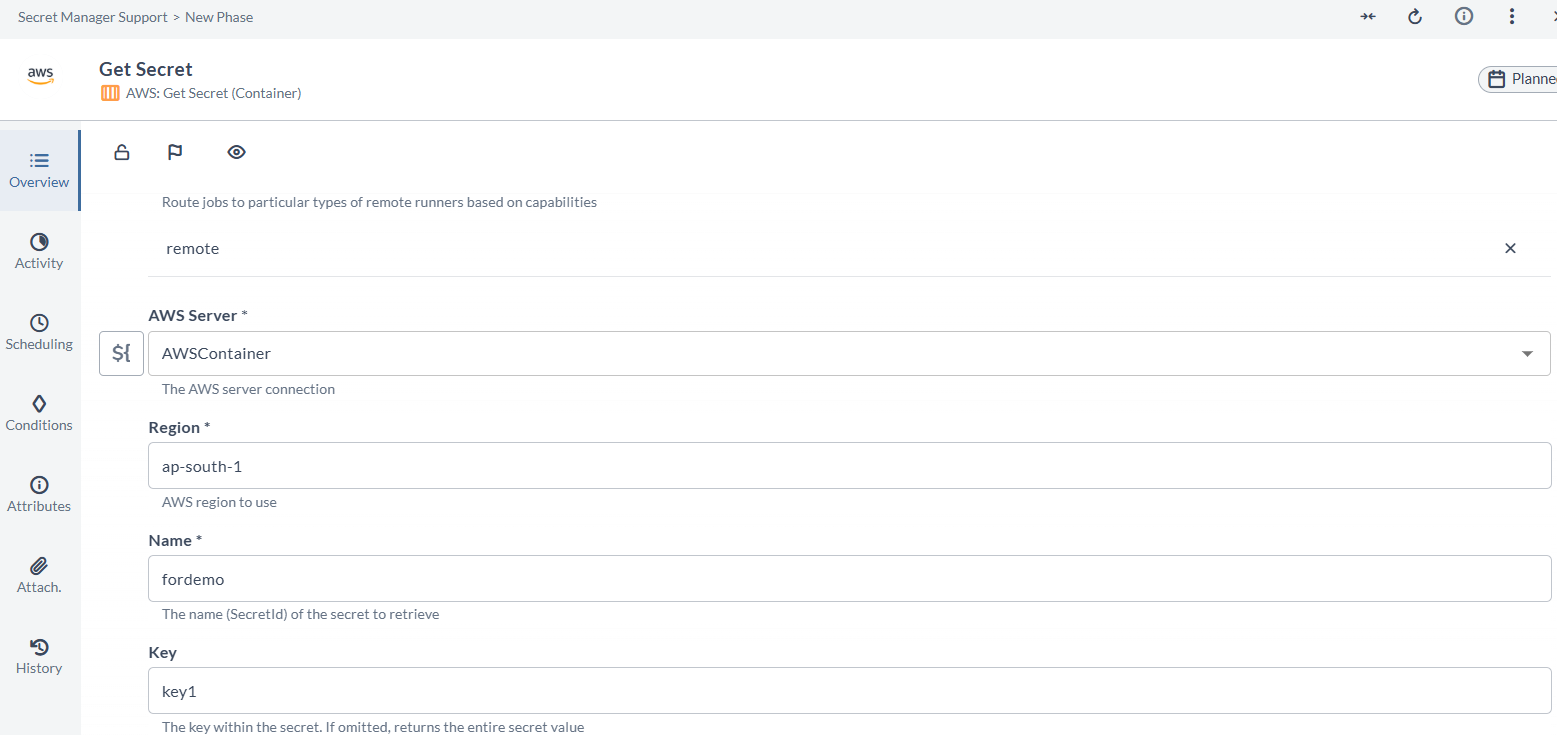

Get Secret (Container)

The Get Secret (Container) task retrieves a stored secret from AWS Secrets Manager.

Field	Description
AWS Server	Select the configured AWS server.
Region	Enter the AWS region to be used.
Name	Enter the name (SecretId) of the secret to retrieve.
Key	Enter the key within the secret to retrieve. If omitted, the entire secret value is returned.

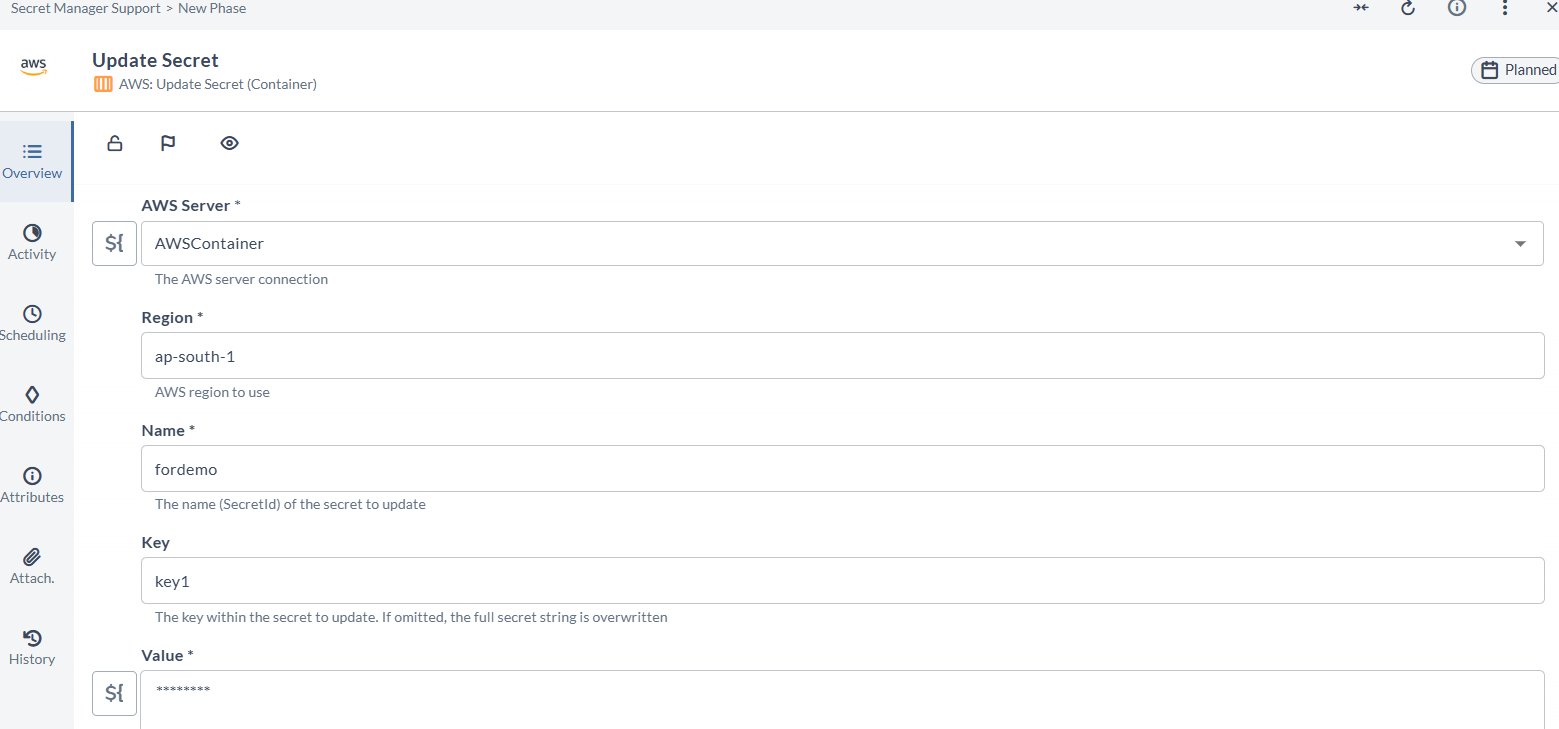

Update Secret (Container)

The Update Secret (Container) task updates an existing secret in AWS Secrets Manager.

Field	Description
AWS Server	Select the configured AWS server.
Region	Enter the AWS region to be used.
Name	Enter the name (SecretId) of the secret to update.
Key	Enter the key within the secret to update. If omitted, the full secret string is overwritten.
Value	Enter the new secret value.

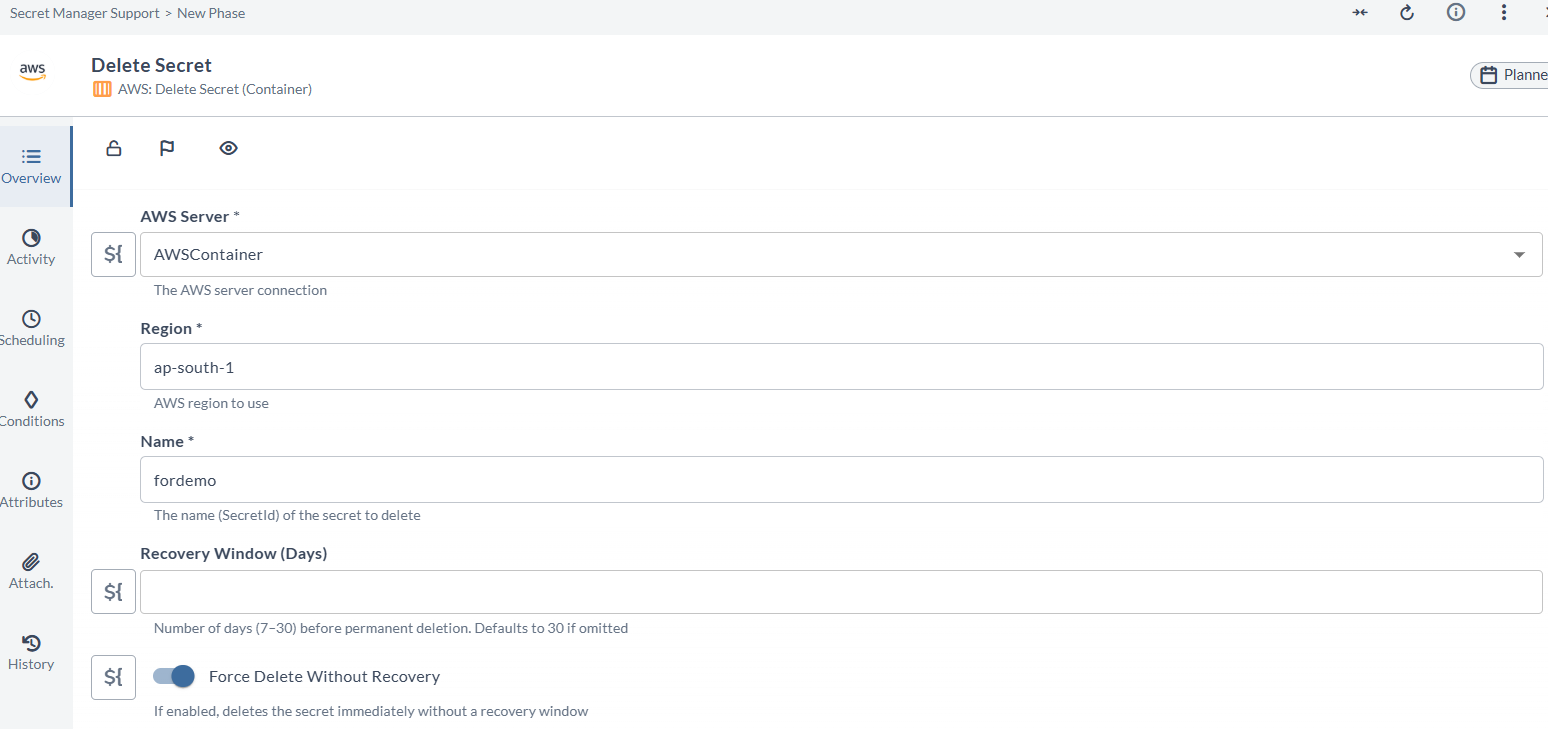

Delete Secret (Container)

The Delete Secret (Container) task deletes a secret from AWS Secrets Manager.

Field	Description
AWS Server	Select the configured AWS server.
Region	Enter the AWS region to be used.
Name	Enter the name (SecretId) of the secret to delete.
Recovery Window (Days)	Enter the number of days (7–30) before permanent deletion. Defaults to 30 if omitted.
Force Delete Without Recovery	Toggle on to delete the secret immediately without a recovery window.
