Gitlab Plugin

This topic describes how to configure the Digital.ai Release Gitlab plugin.

Prerequisites

• Install the Gitlab plugin into the XLR plugins/xlr-official folder.

Requirements

• GitLab server compatible with API v4
• Digital.ai Release running and accessible

Configuration

• You need a URL and personal access token to connect to the GitLab server
• Create a Connection for your GitLab Server

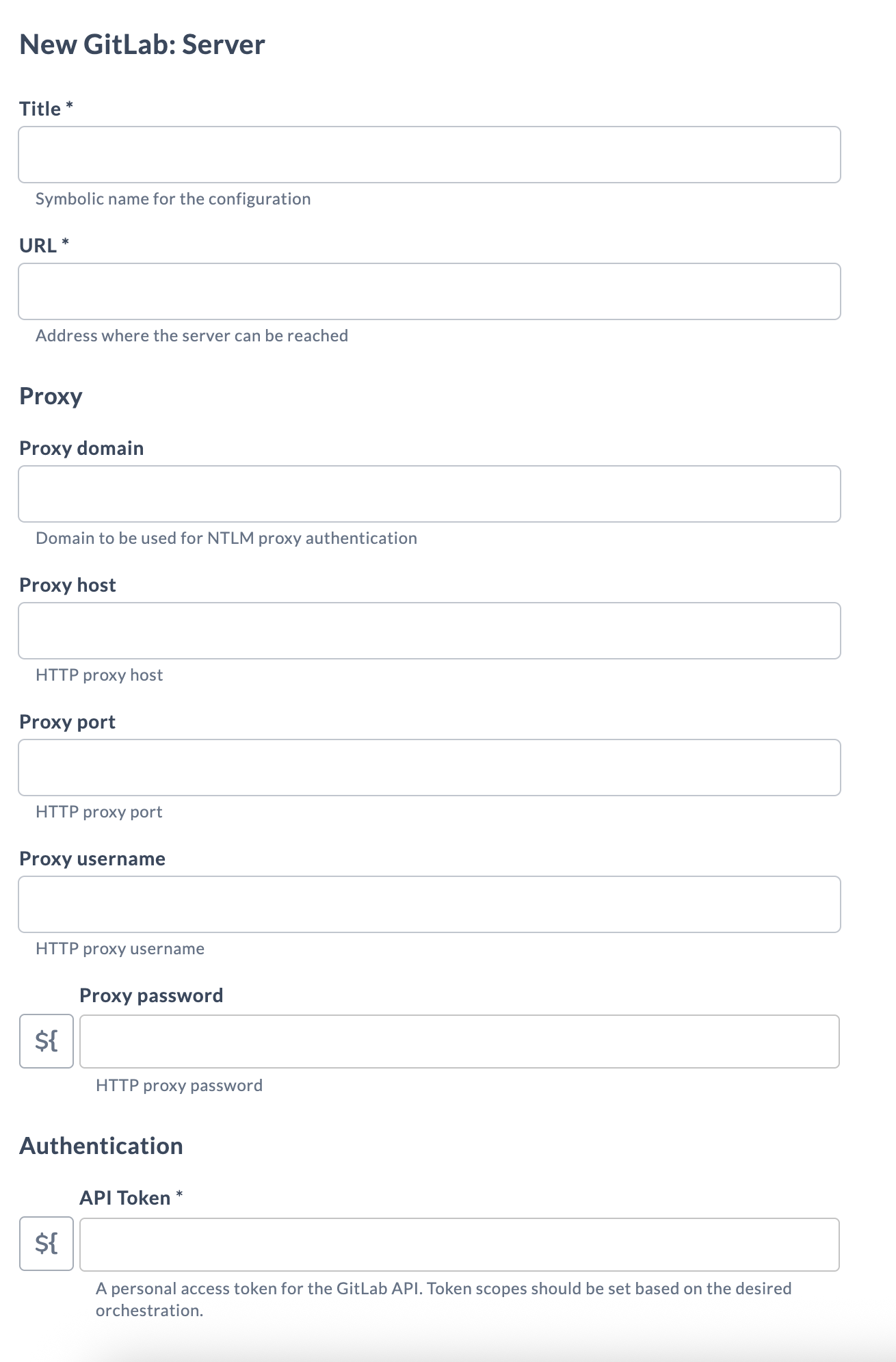

Set up a Connection to the GitLab Server

1. From the navigation pane, click Configuration > Connections.
2. Under configurations, beside Gitlab: Server, click
3. Enter the name for the configuration in the Title field.
4. Enter the URL in URL field, where the Gitlab server is running.
5. Enter the personal access token in the API Token field.
6. In API Token, enter the personal access token.
7. Click Test, to test the connection.
8. Click Save, to save the configuration.

Features

• GitLab triggers - Used to poll GitLab for triggering releases:

  • GitLab commit trigger
  • GitLab tag trigger

• Tasks of GitLab:

  • Gitlab: Accept Merge Request
  • Gitlab: Create Branch
  • Gitlab: Create Group
  • Gitlab: Create Merge Request
  • Gitlab: Create Project
  • Gitlab: Create Project Webhook
  • Gitlab: Create Tag
  • Gitlab: Query Commits
  • Gitlab: Query Data
  • Gitlab: Query Merge Requests
  • Gitlab: Query Pipeline Status
  • Gitlab: Query Pipelines
  • Gitlab: Query Project
  • Gitlab: Query Secure Data
  • Gitlab: Query Tags
  • Gitlab: Run Job
  • Gitlab: Trigger Pipeline
  • Gitlab: Create Pipeline
  • Gitlab: Revert Commit
  • Gitlab: Clone Repository
  • Gitlab: Commit Files
  • Gitlab: Close Merge Request
  • Gitlab: Delete Tag
  • Gitlab: Delete Branch
  • Gitlab: Approve Merge Request

With Release 23.1, the Order by and Sorting Order fields are added for the Query Tags task.

• Webhooks event for Gitlab.
• Gitlab tiles on the release dashboard.

note

You cannot run the clone and commit tasks together in a clustered setup.

Set up a Connection for Commit Webhook

1. In your GitLab instance, add a webhook
2. Select Push events
3. Specify the Release URL as: http://username:password@xlrserver:port/api/extension/gitlab/commit_webhook?template=<templateName/prefix>
4. The following variables are available in Release:
   • project_name
   • repo_full_name
   • branch_name
   • commit_message
   • current_commit_hash

Set up a Connection for Merge Request Webhook

1. In your GitLab instance, add a webhook
2. Select Push events
3. Specify the Release URL as: http://username:password@xlrserver:port/api/extension/gitlab/pr_webhook?template=<templateName/prefix>
4. The following variables are available in Release:
   • pull_request_number
   • pull_request_title
   • repository_name
   • proj_name
   • source_hash
   • source_branch
   • source_project
   • source_repo
   • target_branch
   • target_project
   • target_repo

Tile and Dashboard Configuration

There are seven tiles available:

• GitLab Commits Tile
• GitLab Contributions Tile
• GitLab Merge Requests Tile
• GitLab Pipelines Tile
• GitLab Pipeline Trends
• GitLab Tags Timeline Tile
• GitLab Timeline Tile

1. From the navigation pane, click Reports.
2. Select the dashboard where you want to add the new tile.

note

If you have not created a dashboard yet, click Add dashboard on the top right of the screen to create dashboard.

3. In the top right of the screen, click Configure dashboard.
4. In the top right of the screen, click Add tiles.
5. Hover over GitLab Commits Tile, and click Add.
6. Click Configure option present in the tile.
7. Enter a name for the tile in the Title field.
8. Select the server configured in the Gitlab Server field.
9. Enter the project key in the Project ID field.
10. Enter the name of branch from where data can be fetched in the Branch Name field.
11. Enter the limit of list in numbers, in the Results Limit field.
12. Click Save.

You can configure the rest of the tiles using the same process described above.

Accept Merge Request

This task accepts a merge request, merging changes from one branch into another after review and approval.

Create Branch

This task creates a branch. It is used to start a new line of development separate from the main codebase.

Create Group

This task creates a group. It is used to organize projects and manage permissions for a collection of related projects.

Create Merge Request

This task creates a merge request. It is used to propose changes from one branch to be merged into another, often involving code review and approval processes. Toggle the Remove Source Branch switch on to delete the source branch post-merge.

Create Project

This task creates a project. It is used to initialize a new project repository, typically within a version control system.

Create Project Webhook

This task creates a project webhook. It is used to set up notifications for specific events occurring in a project, such as commits or merges.

Create Tag

This task creates a tag. It is used to mark a specific point in the repository history, often for releases or significant milestones.

Query Commits

This task queries commits. It is used to retrieve a list of commits from a repository, often with details such as author, date, and commit message.

Query Data

This task queries data. It is used to fetch general data related to a project or repository, such as metrics or logs. In Release 25.3, a new Query Parameters field is added to narrow search results.

Query Merge Requests

This task queries merge requests. It is used to retrieve a list of merge requests, along with their statuses and details.

Query Pipelines

This task queries pipelines. It is used to fetch information about CI/CD pipelines, including their statuses and results.

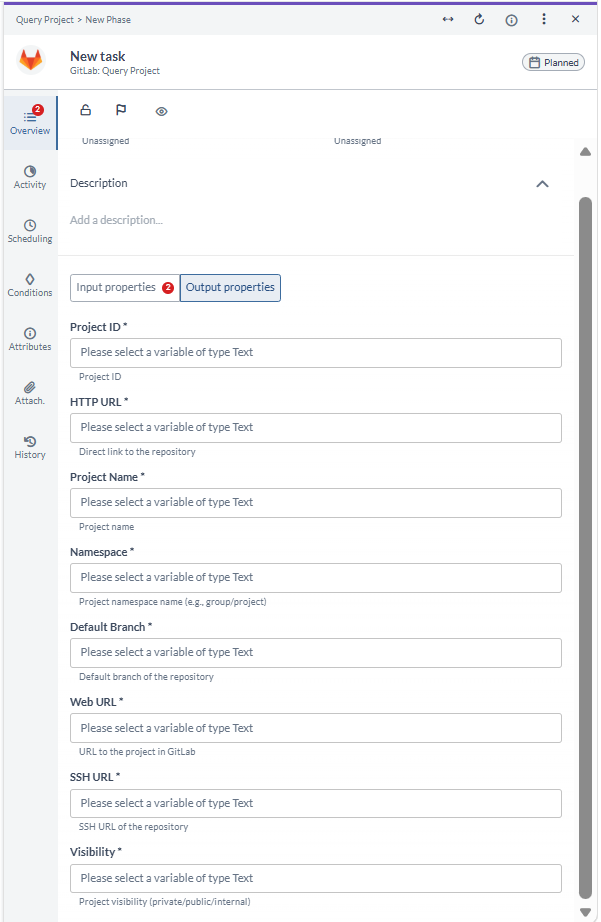

Query Project

This task queries a project. It is used to retrieve details about a specific project, such as its settings, members, and activity.

Query Secure Data

This task queries secure data. It is used to fetch sensitive or protected information related to a project, typically with appropriate access controls.

Query Tags

This task queries tags. It is used to list all tags in a repository, often with details about the tagged commits.

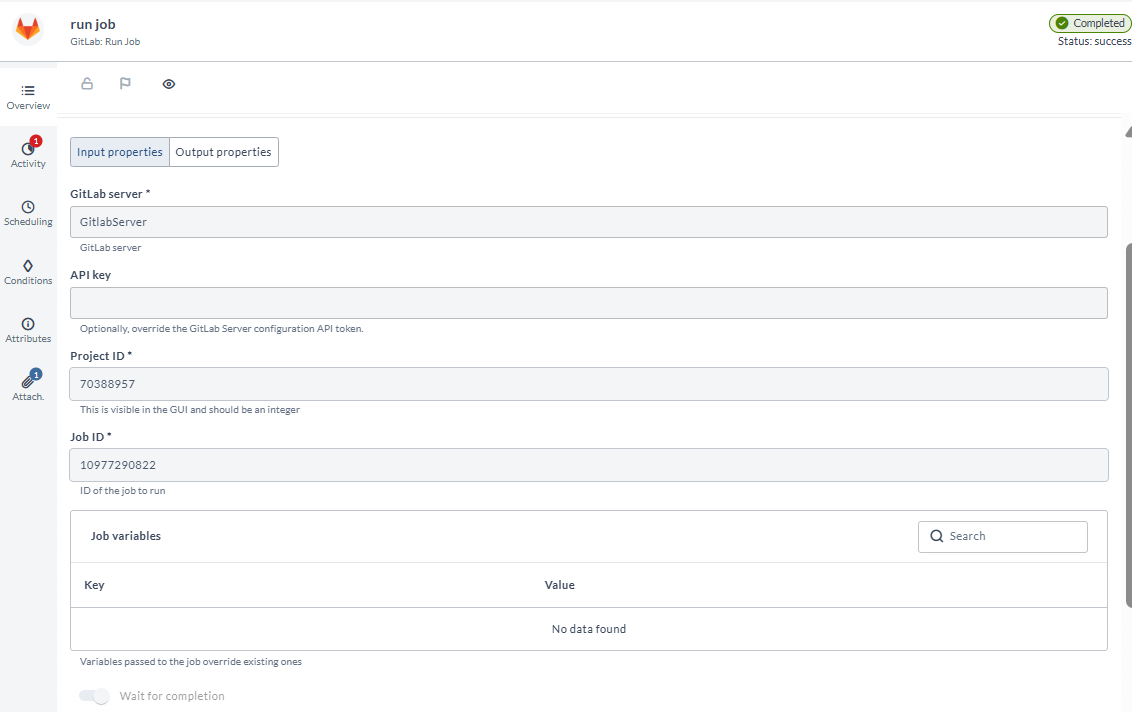

Run Job

This task runs a GitLab job manually. It is used to trigger a specific job defined in a GitLab CI/CD pipeline.

Trigger Pipeline

This task triggers a pipeline. It is used to start a new CI/CD pipeline run for a project, usually after a commit or merge.

Query Pipeline Status

This task queries the pipeline status. It is used to check the current state and results of a specific pipeline run.

Clone Repository

This task clones a repository. It is used to create a local copy of a remote repository for development or analysis.

Commit Files

This task commits files. It is used to save changes to the repository with a new commit, typically including a commit message describing the changes.

Revert Commit

This task reverts a commit. It is used to undo the changes introduced by a specific commit, creating a new commit that reverses those changes.

Approve Merge Request

This task approves a merge request. It is used to indicate that a merge request has been reviewed and is ready to be merged.

Close Merge Request

This task closes a merge request. It is used to mark a merge request as closed without merging it, often due to changes being no longer needed or handled differently.

Delete Tag

This task deletes a tag. It is used to remove a tag from the repository, often when it is no longer relevant or was created by mistake.

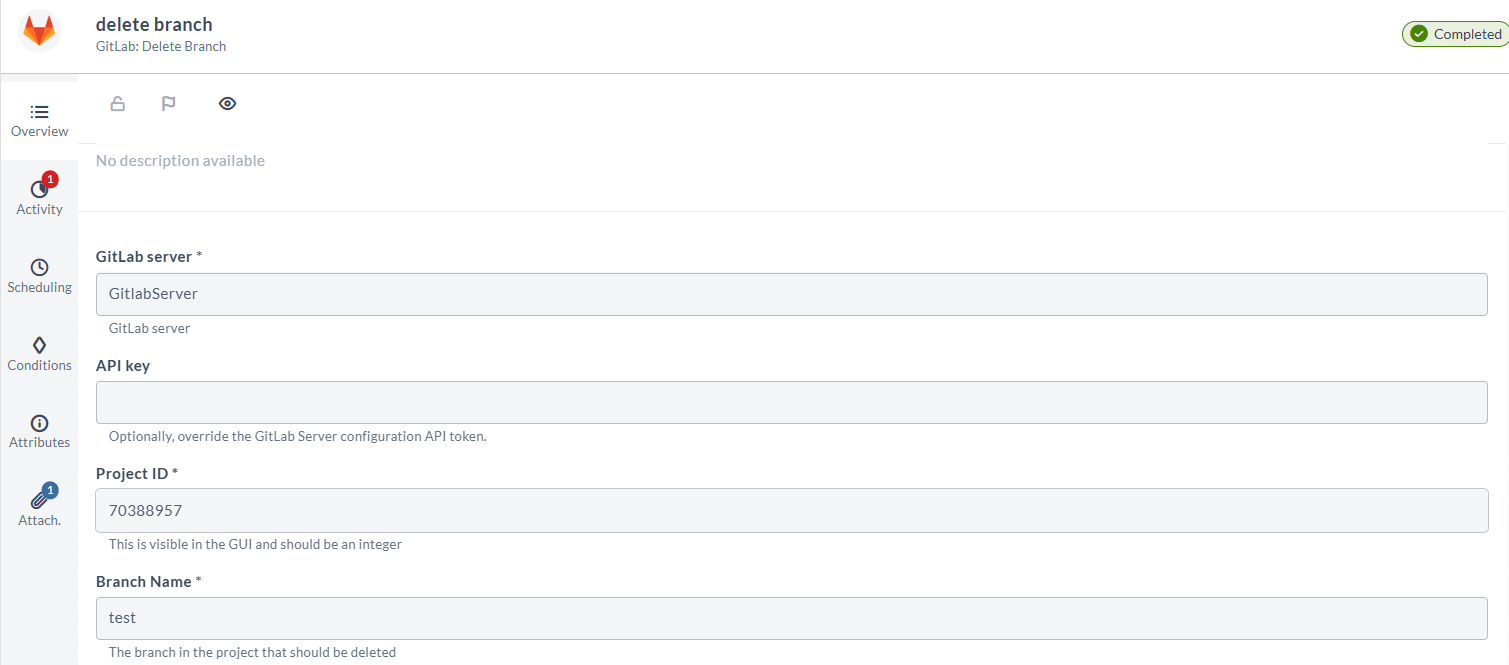

Delete Branch

This task deletes a branch in a GitLab repository. It is used to remove an existing branch that is no longer needed. To delete a branch, you must provide the project ID and the branch name. Once executed, the specified branch will be permanently removed from the repository.

Create Pipeline

This task creates a new pipeline, setting up and initiating a new CI/CD pipeline for a project.
