Argo CD Plugin

This topic describes the tasks available with the Argo CD plugin.

About Argo CD

Argo CD is a GitOps continuous delivery tool for Kubernetes, which continuously monitors all the running applications and compares the live state with the desired state specified in the Git repo. Argo CD automates the deployment of the desired application states in the specified target environments. Application deployments can track updates to branches, tags, or pinned to a specific version of manifests at a Git commit.

A deployed application is considered OutOfSync when its live state deviates from the target state.

---

Prerequisites

1. Digital.ai Release 22.0.x or later
2. A running Argo CD server

---

Setup Connection to Argo CD Server

1. Log on to Digital.ai Release as an Administrator.

2. Navigate to CONFIGURATION > Connections.

3. Click the + icon next to ArgoCD: Server.

4. Fill in the required information:

   Field	Description
   Title	A name for the Argo CD server connection.
   URL	The base URL where the Argo CD server can be reached.
   Username	Login username for the Argo CD server.
   Password	Login password for the Argo CD server.
   Auth Token	Authentication token for connecting to the Argo CD server. Use this instead of username/password when token-based authentication is enabled.
   Proxy	Fill in the proxy details if needed.
   Capabilities	Defines routing rules for remote runners. Add one or more capability labels to direct tasks to appropriate runners.



5. Click Test to verify your connection to the Argo CD server.

6. Click Save if the connection is successful.

---

Available Tasks

The following tasks are available with the Argo CD plugin:

• Add Or Update Repository
• Create Project
• Create Or Update Application
• Sync Application
• Get Sync Status
• Get Manifest
• Wait For Status
• Get Revision Metadata
• List Projects
• List Repositories
• Rollback Application
• Delete Application

Each task in the Argo CD plugin includes a set of input properties and output properties. Input properties pass in parameters required for execution, while output properties capture the results returned by Argo CD.

tip

The task output properties can be mapped to Release variables for later use.
For more information, see Mapping Task Output Properties to Variables.

---

Add Or Update Repository

Adds a new repository configuration in the ArgoCD instance or updates the configuration if it already exists.

Input Properties

Field	Description
ArgoCD server	The ArgoCD server connection to use for this operation.
Repo type	Specifies the type of repository being added or updated (git and helm).
Repo URL	URL to the Git or Helm chart repository.
Repository name	Optional unique identifier for this repository configuration within ArgoCD.
Project	Name of the ArgoCD project to which the repository will be associated.
Repo username	Username used for authenticating to the repository.
Repo password	Password or token used for repository authentication.
Enable LFS	Enables Git Large File Storage (LFS) support for the repository.
Enable OCI	Enables OCI support when configuring an OCI-based Helm repository.
Inherited credentials	Uses credentials defined at the ArgoCD server level instead of providing task-level credentials.
Insecure	Allows insecure connections (e.g., skipping certificate validation).
Insecure Ignore host key	Disables SSH host key verification when connecting via SSH.
Proxy	HTTP/HTTPS proxy URL used when accessing the repository.
SSH key	SSH private key (in plain text) for authenticating to an SSH-based Git repository.
TLS client certificate	TLS certificate (PEM format) for repository connections requiring client-side certificates.
TLS client key	TLS private key (PEM format) paired with the client certificate.
Upsert	Updates the repository configuration if it already exists instead of failing.

Output Properties

Field	Description
Repository URL	The final repository URL configured in ArgoCD.
Response	Key-value map containing the response returned by ArgoCD for the operation.

---

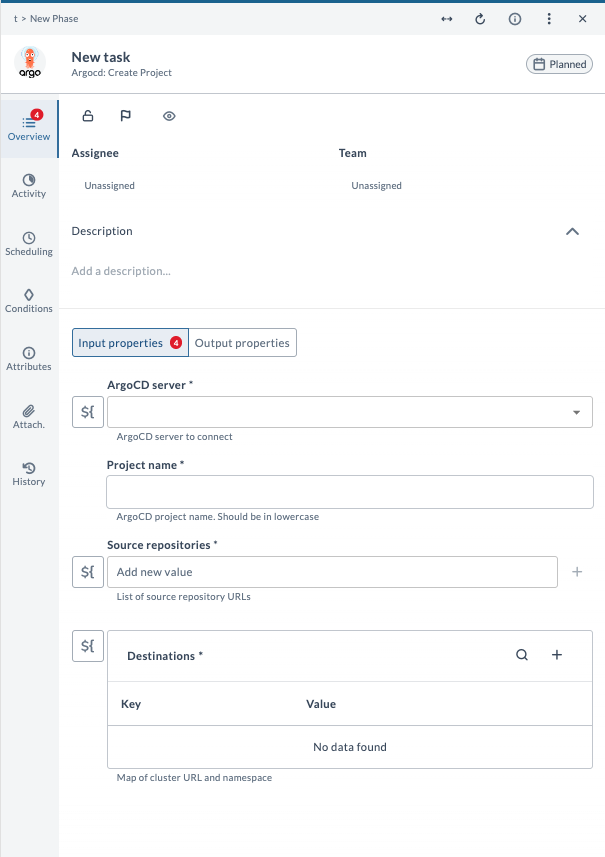

Create Project

Creates a new project in the ArgoCD instance.

Input Properties

Field	Description
ArgoCD server	The ArgoCD server connection to use for this operation.
Project name	Name of the ArgoCD project. Must be lowercase.
Source repositories	List of repository URLs that the project is allowed to reference.
Destinations	Key-value map specifying allowed deployment destinations (cluster URL and namespace).

Output Properties

Field	Description
Project name	Returns the created project name.

---

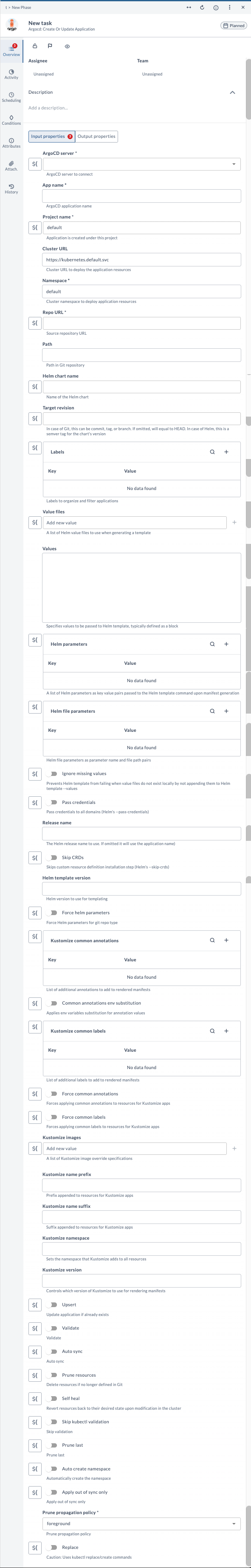

Create Or Update Application

Creates a new application in the ArgoCD instance or updates the configuration if it already exists.

Input Properties

Field	Description
ArgoCD server	The ArgoCD server connection to use for this operation.
App name	Name of the ArgoCD application.
Project name	ArgoCD project under which this application will be created.
Cluster URL	Destination cluster URL for deploying the application.
Namespace	Namespace in the target cluster where the application will be deployed.
Repo URL	Source repository URL containing the manifests, Helm chart, or Kustomize configuration.
Path	Repository path where the application manifests or chart are located.
Helm chart name	Name of the Helm chart (when using Helm).
Target revision	Git/Helm reference to sync (commit, tag, branch, semver expression).
Labels	Key-value labels to attach to the application. These labels can be used to organize, search, and filter applications in the Argo CD UI.
Value files	List of Helm value files to use during rendering.
Values	Inline Helm values in YAML/JSON format.
Helm parameters	Key-value parameters to override Helm chart defaults.
Helm file parameters	File-based Helm parameters.
Helm missing values	Whether to ignore missing Helm values during rendering.
Pass credentials	Passes credentials (username/password or SSH private key) to submodules.
Release name	Helm release name. If not provided, ArgoCD uses the application name.
Skip CRDs	Skips installing CRDs when deploying Helm charts.
Helm template version	Helm version to use for templating.
Force Helm parameters	Forces Helm parameters to take precedence.
Kustomize common annotations	Key-value annotations added to all Kustomize resources.
Common annotations override	Allows overriding Kustomize annotations at resource level.
Kustomize common labels	Key-value labels added to all Kustomize resources.
Force common annotations	Forces Kustomize common annotations to override resource annotations.
Force common labels	Forces Kustomize common labels to override resource labels.
Kustomize images	List of Kustomize image transformations for deployment.
Kustomize name prefix	Prefix added to Kustomize-managed resources.
Kustomize name suffix	Suffix added to Kustomize-managed resources.
Kustomize namespace	Namespace applied to all Kustomize-managed resources.
Kustomize version	Version of Kustomize to use for templating.
Upsert	Updates the application configuration if it already exists.
Validate	Validates application manifests before deploying.
Auto sync	Enables automatic syncing of the application.
Prune resources	Deletes resources that are no longer defined in Git.
Self heal	Automatically corrects drift between live and desired state.
Skip dry run	Ignores dry-run validation before making modifications.
Skip cluster validation	Bypasses cluster-side validation when deploying resources.
Prune last	Deletes resources only after successful sync of new objects.
Auto create namespace	Automatically creates the namespace if it does not exist.
Apply out of sync only	Only applies resources that are out of sync.
Prune propagation policy	Defines pruning strategy (foreground, background, and orphan).
Revision	Git revision or Helm chart version to deploy.

Output Properties

Field	Description
App name	Returns the configured application name.
Response	Key-value map containing the response returned by ArgoCD for the operation.

---

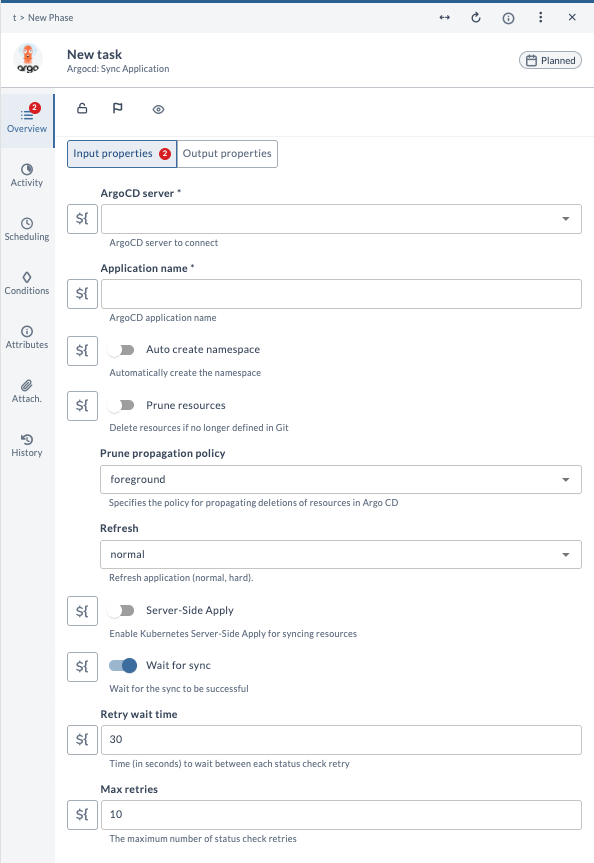

Sync Application

This task lets you sync an Argo CD application to the Kubernetes cluster provided.

Input Properties

Field	Description
ArgoCD server	The ArgoCD server connection to use for this operation.
Application name	Name of the ArgoCD application.
Auto create namespace	Automatically creates the namespace if it does not exist.
Prune resources	Deletes resources that are no longer defined in Git.
Prune propagation policy	Defines the deletion propagation strategy (foreground, background, orphan).
Refresh	Refresh mode for the application (normal or hard).
Server-Side Apply	Enables Kubernetes Server-Side Apply when syncing resources.
Wait for sync	Waits until the sync operation completes successfully.
Retry wait time	Time in seconds to wait between retry attempts.
Max retries	Maximum number of retry attempts.

Output Properties

Field	Description
Status	Result of the application sync operation.
Revision	The application revision that was synced.

---

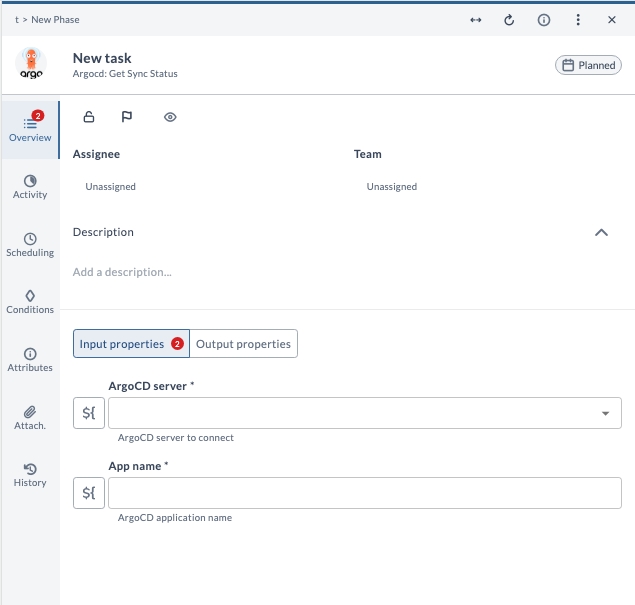

Get Sync Status

Retrieves the sync status of an existing ArgoCD application.

Input Properties

Field	Description
ArgoCD server	The ArgoCD server connection to use for this operation.
App name	Name of the ArgoCD application.

Output Properties

Field	Description
Sync status	Current sync status of the application.
Revision	Git revision or chart version currently applied by the application.

---

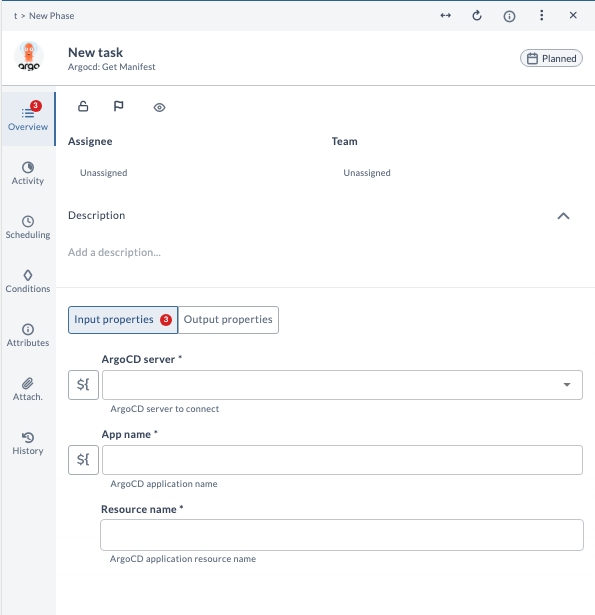

Get Manifest

Retrieves the manifest of a specific resource within an ArgoCD application.

Input Properties

Field	Description
ArgoCD Server	The ArgoCD server connection to use for this operation.
App Name	Name of the ArgoCD application.
Resource Name	Name of the resource inside the application whose manifest is requested.

Output Properties

Field	Description
Live manifest	The live manifest of the resource as observed in the cluster.
Desired manifest	The desired manifest of the resource as defined in Git.

---

Wait For Status

This task is used to wait for the Argo application to move to the expected sync and health status.

Input Properties

Field	Description
ArgoCD server	The ArgoCD server connection to use for this operation.
App name	Name of the ArgoCD application.
Expected sync status	Sync status the task waits for.
Expected health status	Health status the task waits for.
Retry wait time	Time in seconds to wait between retry attempts.
Max retries	Maximum number of retry attempts.

Output Properties

Field	Description
Sync status	Final sync status of the application.
Health status	Final health status of the application.
Revision	Current revision of the application at the time of completion.

---

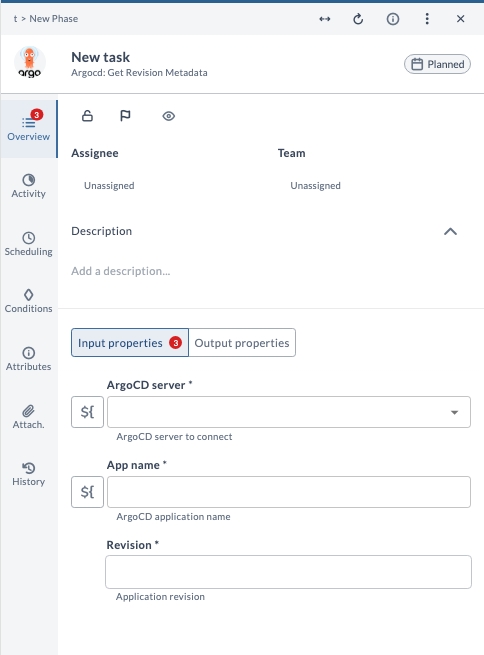

Get Revision Metadata

This task is used to retrieve the application revision metadata based on the revision ID.

Input Properties

Field	Description
ArgoCD server	The ArgoCD server connection to use for this operation.
App name	Name of the ArgoCD application.
Revision	The specific application revision whose metadata is requested. This Revision field is added as an output field in SyncApplication and SyncStatus tasks. You can use these revision values in a complete flow context.

Output Properties

Field	Description
Metadata	Metadata details for the specified application revision.

---

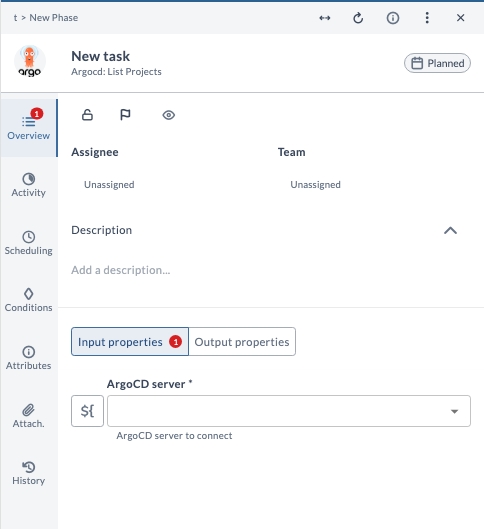

List Projects

Retrieves the list of all projects configured in the ArgoCD instance.

Input Properties

Field	Description
ArgoCD server	The ArgoCD server connection to use for this operation.

Output Properties

Field	Description
Project list	List of all ArgoCD projects.

---

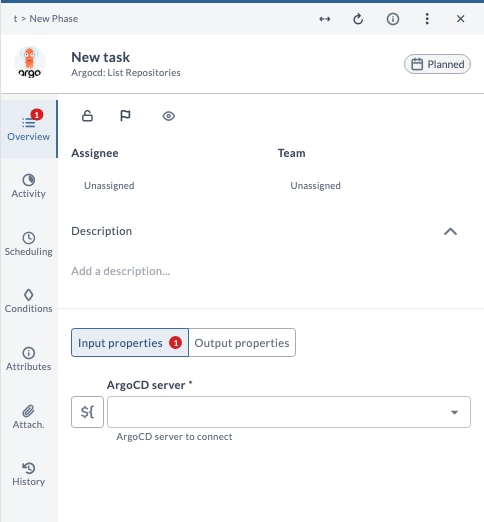

List Repositories

Retrieves and displays information about all the GIT repositories configured in the Argo CD instance.

Input Properties

Field	Description
ArgoCD server	The ArgoCD server connection to use for this operation.

Output Properties

Field	Description
Repositories	List of added repositories.

---

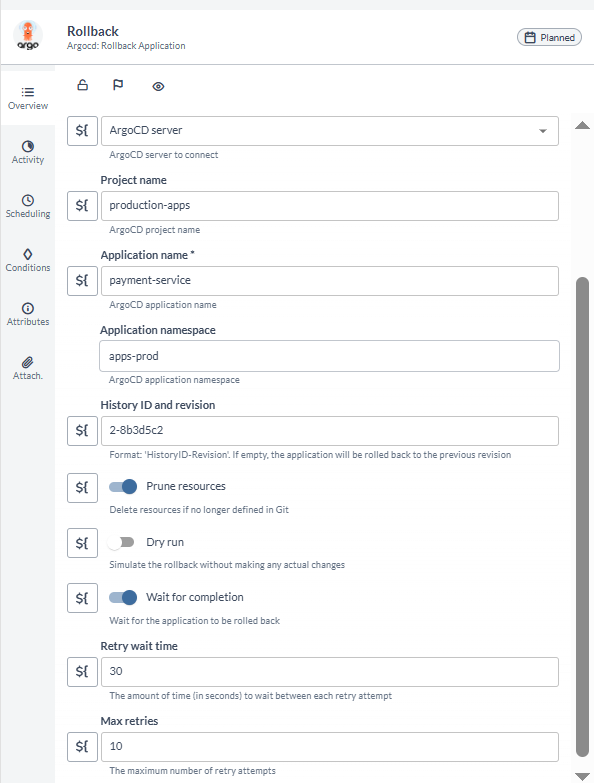

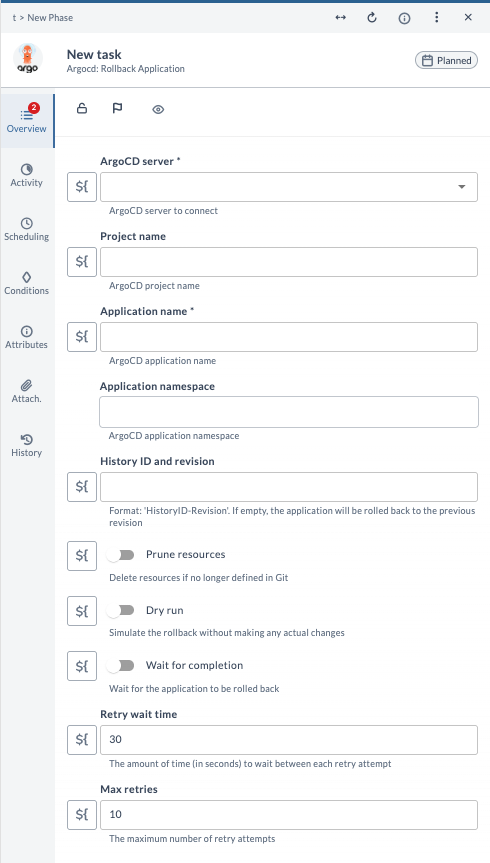

Rollback Application

Rolls back an ArgoCD application to a previous revision.

Input Properties

Field	Description
ArgoCD server	The ArgoCD server connection to use for this operation.
Project name	Name of the ArgoCD project.
Application name	Name of the ArgoCD application.
Application namespace	Namespace where the application is deployed.
History ID and revision	Revision identifier to roll back to. Format: HistoryID-Revision. If left empty, the application rolls back to the previous revision.
Prune resources	Deletes resources that are no longer defined in Git.
Dry run	Simulates the rollback without applying any actual changes.
Wait for completion	Waits until the operation completes.
Retry wait time	Time in seconds to wait between retry attempts.
Max retries	Maximum number of retry attempts.

Output Properties

Field	Description
Application sync status	Sync status of the application after the rollback.
Current revision	The application revision after rollback completion.

---

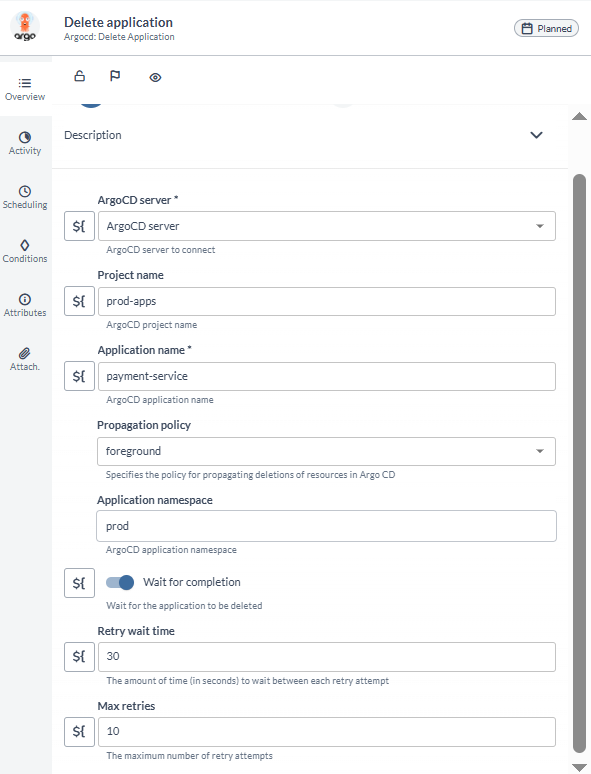

Delete Application

This task deletes an application from Argo CD.

Deletes an existing ArgoCD application along with its managed resources.

Input Properties

Field	Description
ArgoCD server	The ArgoCD server connection to use for this operation.
Project name	Name of the ArgoCD project.
Application name	Name of the ArgoCD application.
Propagation policy	Specifies the policy for propagating deletions of resource (foreground, background, non-cascading).
Application namespace	Namespace where the application is deployed.
Wait for completion	Waits until the operation completes.
Retry wait time	Time in seconds to wait between retry attempts.
Max retries	Maximum number of retry attempts.
